GEEKOM GT1 Mega Mini PC Ultra 1st Gen Intel® Core™ U9/U7
$899 – $999
- Intel Core Ultra 1st Gen, U7-155H or U9 -185H.
- Dual-channel DDR5-5600 SODIMM, up to 64GB.
- M.2 2280 PCIe Gen 4 x 4 SSD, up to 2TB.
- WiFi 7 and Bluetooth 5.4.
- Supports 4 displays, up to 8K.
GEEKOM GT1 MEGA
Beyond ultra, the new leader
Intel® Core™ U9-185H | U7-155H processor
Intel® Core™ U9-185H | U7-155H | U5-125H
2 x 100/1000/2500Mbps (2.5G RJ45 LAN)
NPU Intel® AI Boost
Accelerated
AI processing
Supports 4 displays
up to 8k
WIFI 7
Bluetooth 5.4
Ray Tracing Support
Immersive Viewing Experience

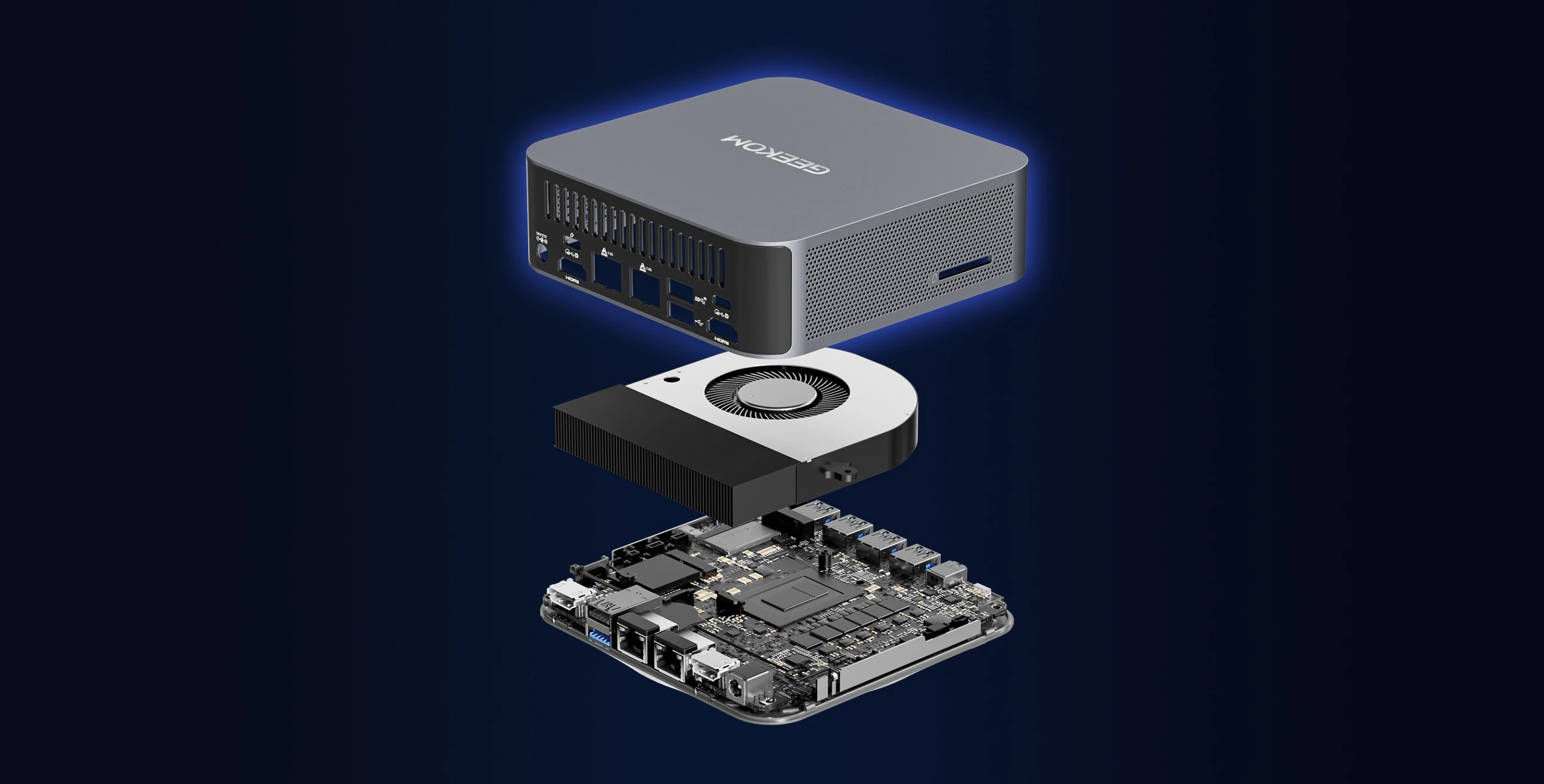

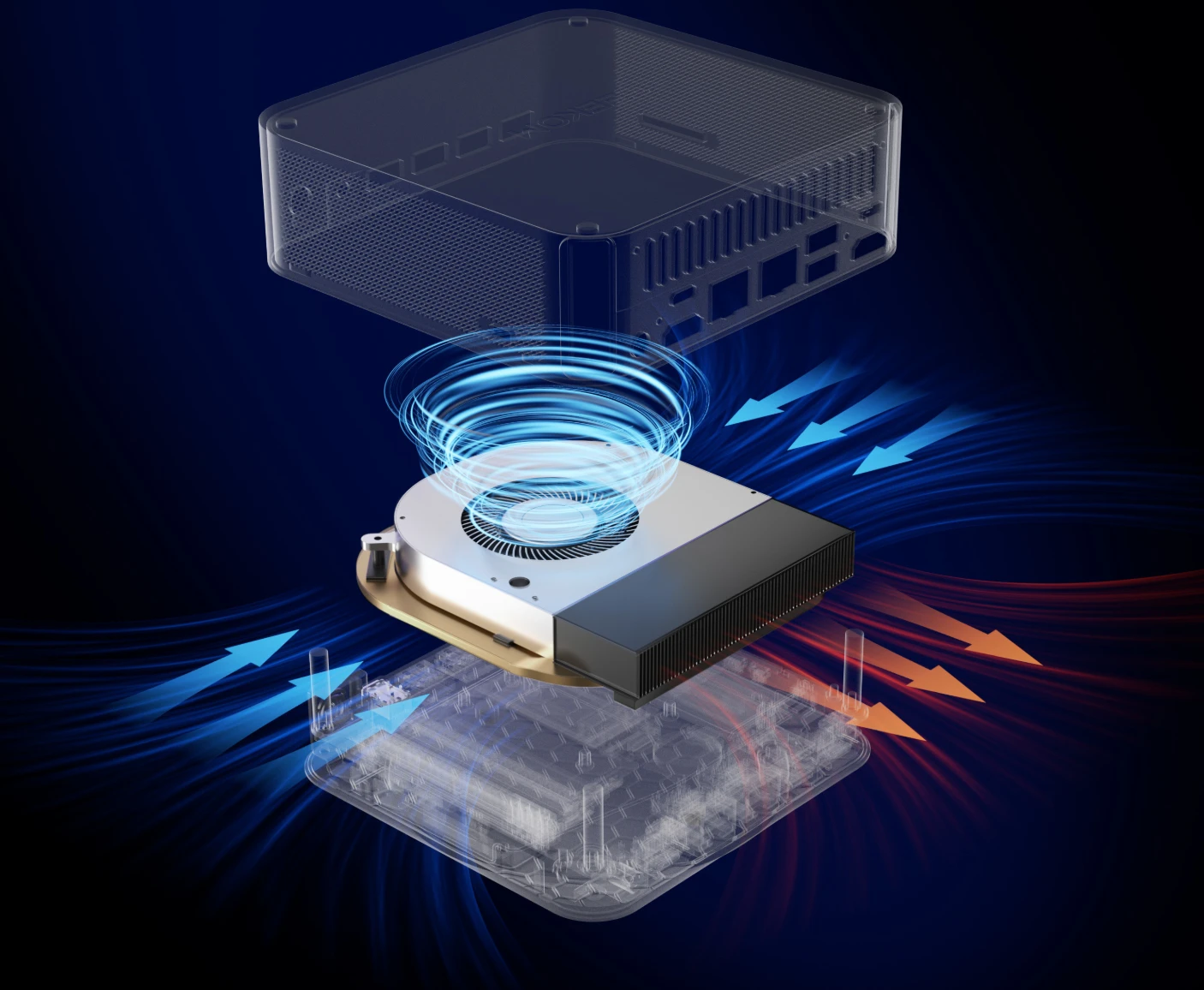

IceBlast 2.0 Cooling System

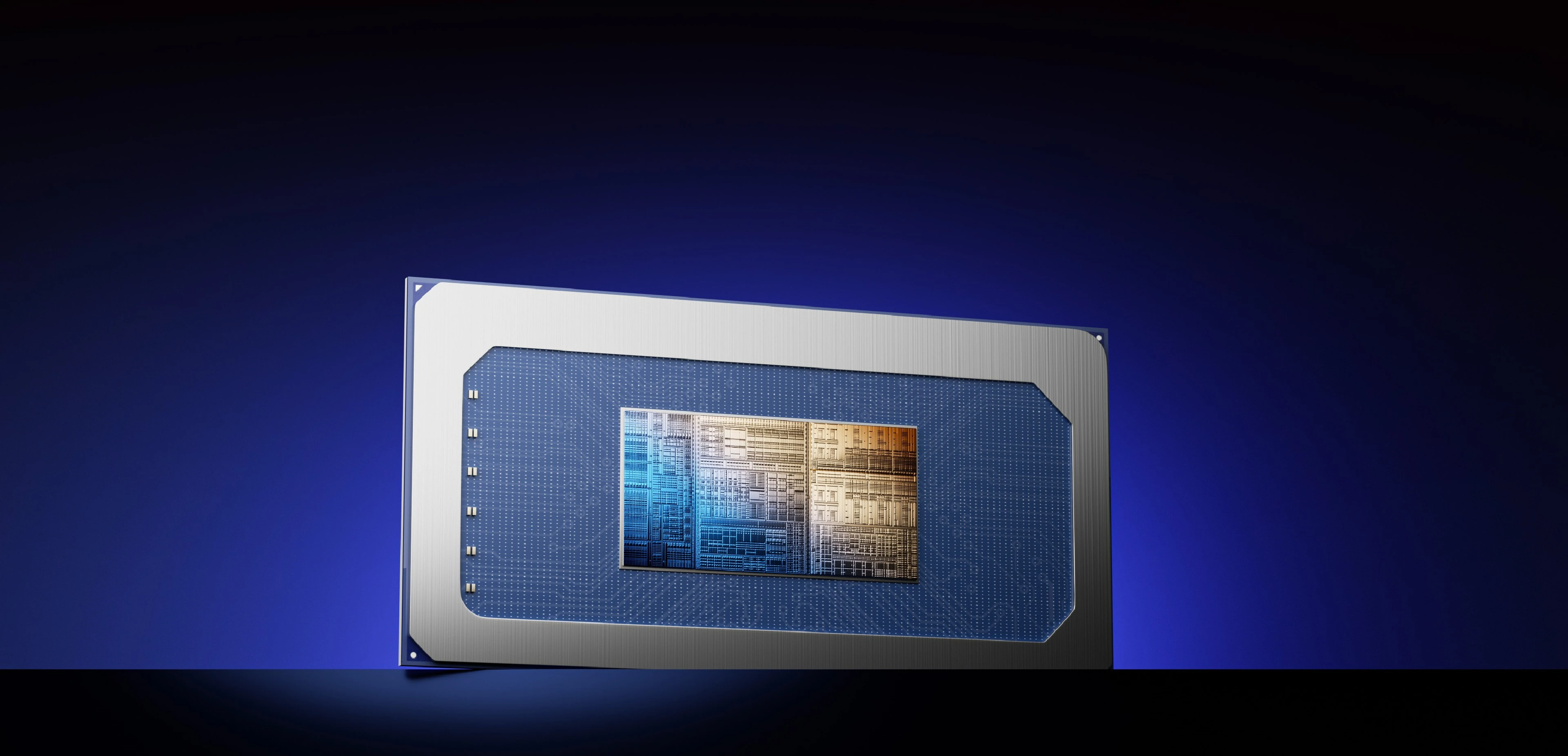

New Ultra, extraordinary
Featuring the all-new Intel Ultra series processors. With multi-module integration and AI-boosted CPU, it operates more efficiently.
Powerful 14th Gen Intel® Core™ U9-185H
16
Cores
22
Threads
24MB
Cache
3.8GHz - 5.1GHz
CPU Frequency
Powerful 14th Gen Intel® Core™ U7-155H
16
Cores
22
Threads
24MB
Cache
3.8GHz - 4.8GHz
CPU Frequency
Powerful 14th Gen Intel® Core™ U5-125H
14
Cores
18
Threads
18MB
Cache
3.6GHz - 4.5GHz
CPU Frequency
Intel® Arc™ graphics
Supports four 4K displays, up to 8K
With support for 4K on four displays and a maximum resolution of 8K, the GEEKOM GT1 MEGA ensures you won't miss any details in your work or any exciting moments in your entertainment.
Support Ray Tracing
Ray Tracing is a revolutionary graphics technology that makes virtual lighting effects incredibly realistic.lt simulates real light for stunning refractions, and shadows. In games, movies, and VR, this tech brings light and shadow to life, enhancing immersion and visual impact. Ray Tracing sets a new standard for visual excellence.
Run Train your Al model
If you want to venture into Al development, the GEEKOM GT1 MEGA is your perfect choice. lts built-in Al acceleration unit opens the door to a new era of Al possibilities.

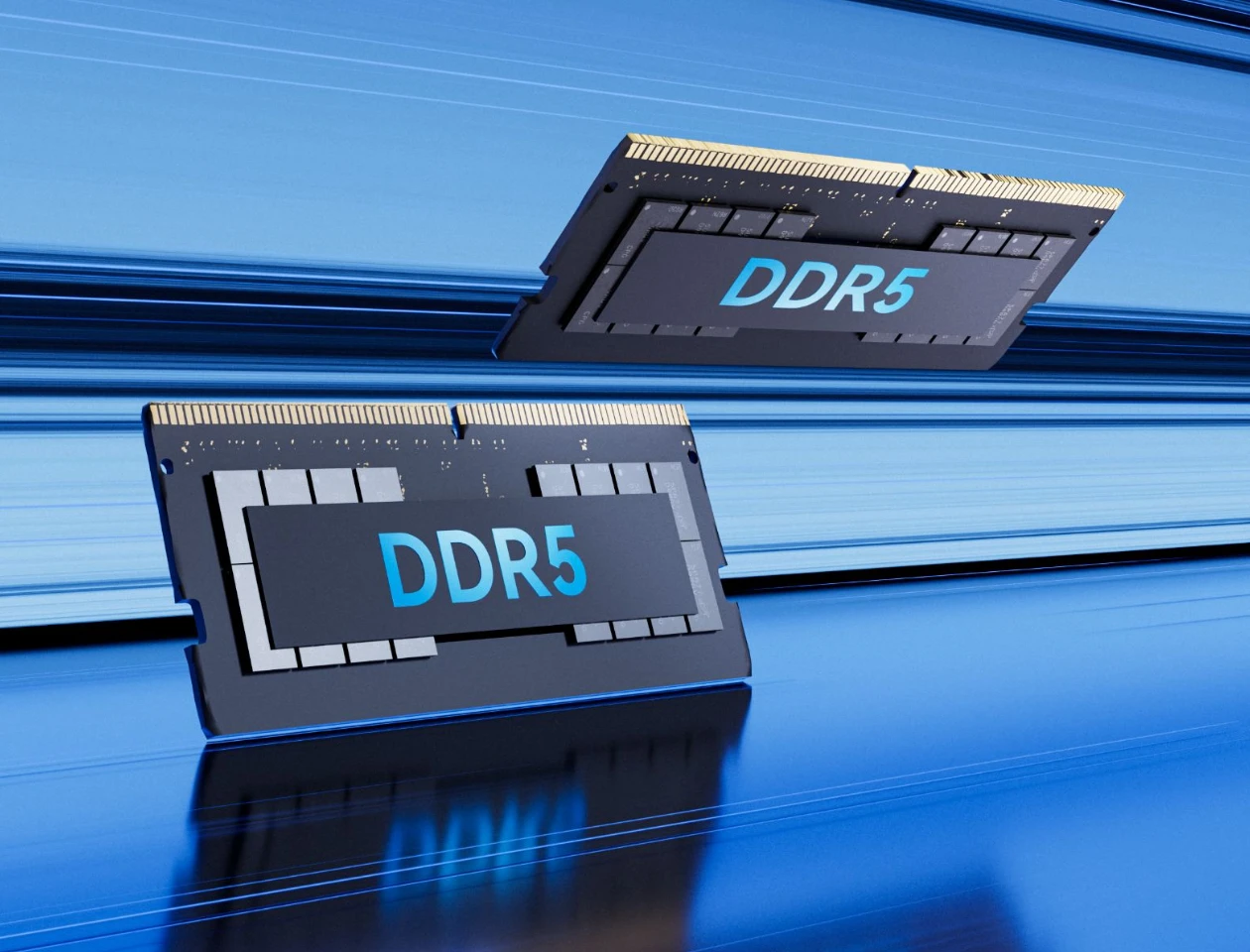

Memory ＆ storage, meeting your needs!
Geekom GT1 Mega features dual-channel DDR5 5600MHz memory, supporting up to 64GB (32GB per module), and offers versatile storage options: an M.2 2280 PCIe Gen 4 x 4 SSD up to 2TB, and an M.2 2242 SATA SSD up to 1TB.
Dual-channel，DDR5 5600MHz up to 64GB
（32GB per module)

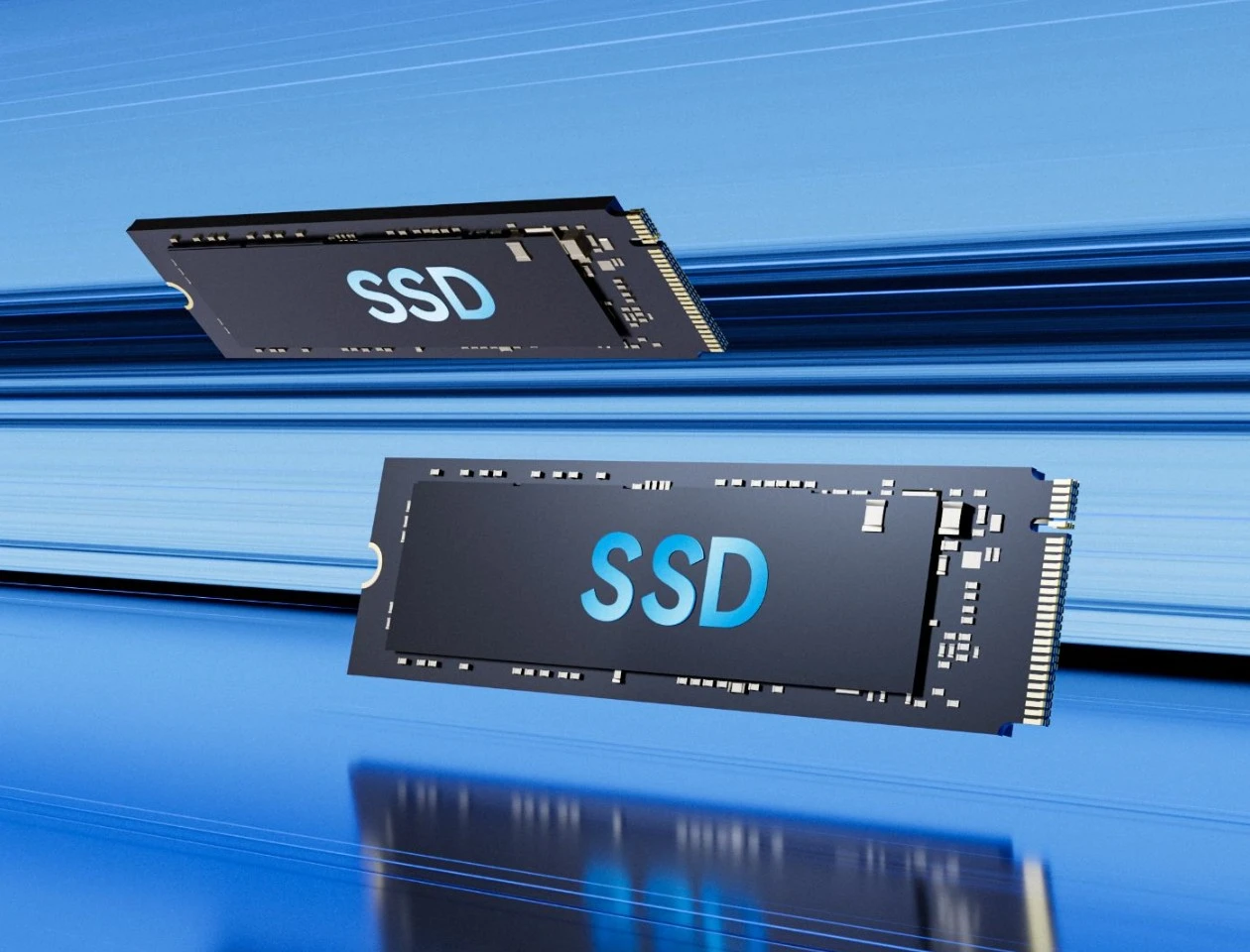

1 x M.2 2280 PCIE Gen 4 x 4 SSD (up to 2TB )
1 x M.2 2242 SATA SSD (up to 1TB )
(Extended Support)
Front
Later
4 x USB3.2 Gen2 Type-A
one port support Always On
1 x Power Button
1 x Kensington Lock
1 x 3.5mm stereo headset jack
2 x USB 4.0
one port support Type-C Power on (adapter in)
2 x RJ45, 2.5 Gbps
1 x USB 2.0 Type-A
1 x USB 3.2 Gen2 Type-A
2 x HDMI 2.0
1 x SD
1 x DC in
Full-Featured USB 4.0 Ports
The GEEKOM GT1 Mega is equipped with two fully functional USB 4.0 ports, enhancing your computing experience with greater versatility and efficiency.
Data transfer speeds
up to
40 Gbps
Video output (DP 1.4)
up to
8K
Power delivery (PD 3.0)
up to
15W
(5V 3A)
External devices
eGPUs
,
SSDs
,
etc.
Experience Next-Level Connectivity with Wi-Fi 7.
The GEEKOM GT1 Mega, powered by revolutionary Wi-Fi 7, provides 4.8x faster speeds using 4K QAM and 320MHz channels, ensures greater reliability in dense areas with MLO and MRU puncturing, and boasts 85% lower latency than Wi-Fi 6, ensuring ultra-responsive connectivity.
One more LAN port，speed’s grand!
Designed with dual LAN ports for superior performance, our system ensures redundancy, load balancing, and increased bandwidth. Experience faster, more reliable connections with dual LAN support. Additionally, it features USB 4, WiFi 7, and Bluetooth 5.4, ensuring transmission speeds that always keep you ahead.
WiFi 7
Bluetooth 5.4
USB 4

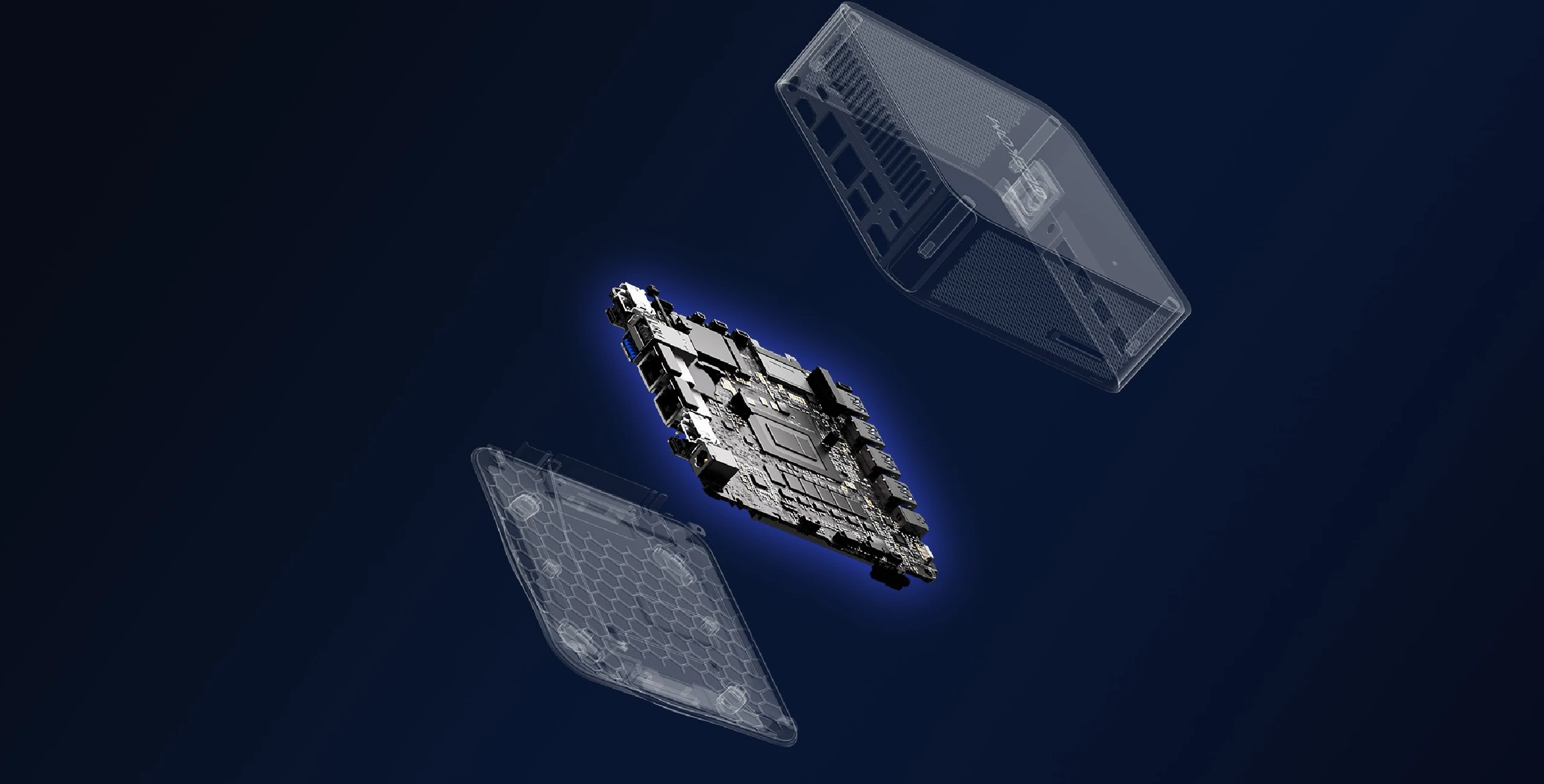

Sleek and Compact Design

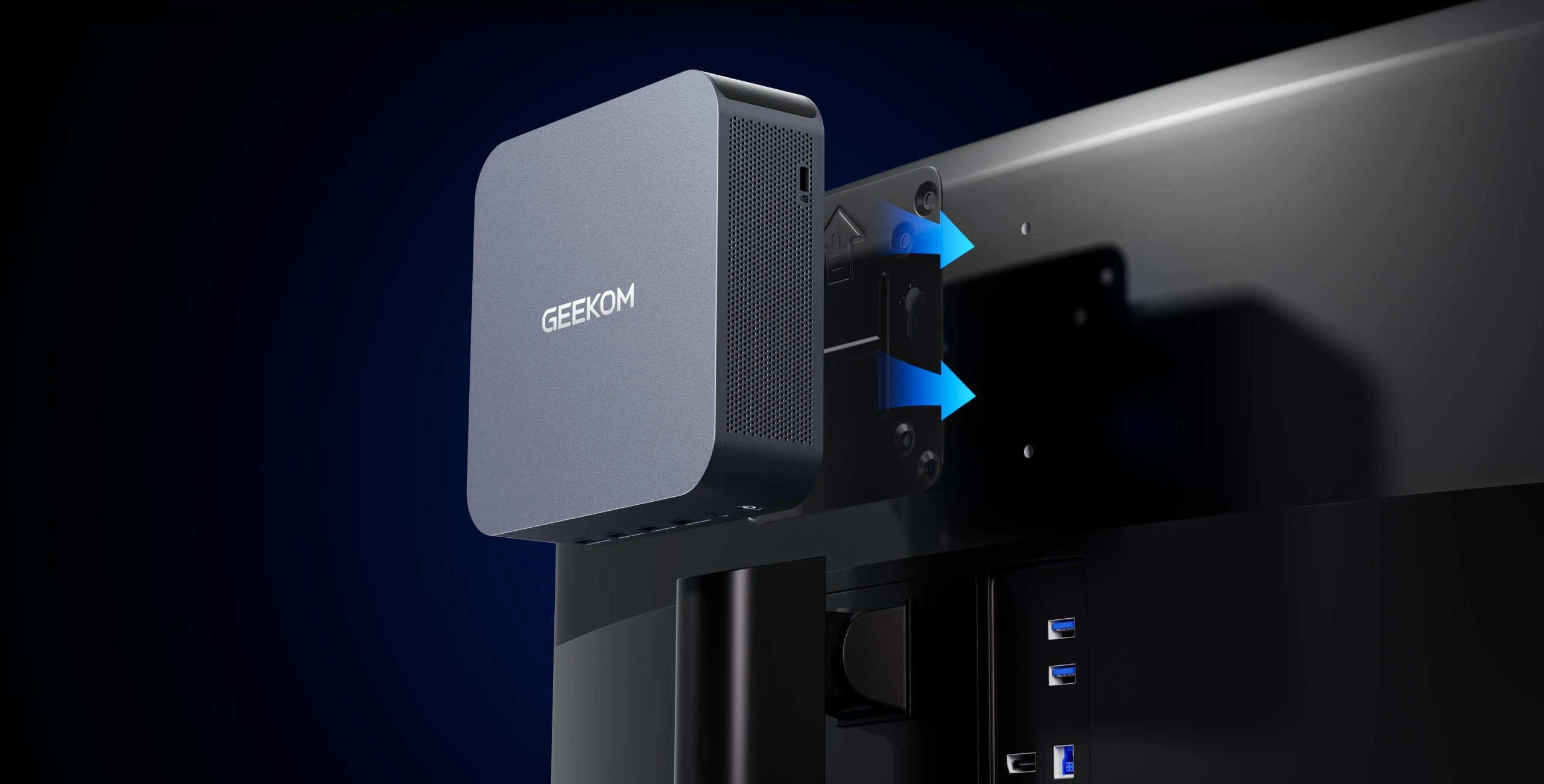

The GT1 MEGA features a sleek single-body aluminum chassis, measuring just half a liter. This design ensures high resistance to scratches and fingerprints. It can be easily mounted behind a monitor using the included VESA mount, keeping your workspace neat and tidy.
Global Leader in Green Mini PCs
The GT1 MEGA incorporates advanced power management technology, intelligently adjusting energy consumption based on different usage scenarios. This not only optimizes performance but also makes a positive impact on the environment.
*In daily working state, the power consumption of GT1 MAGE is 45w.
Make everyday easier

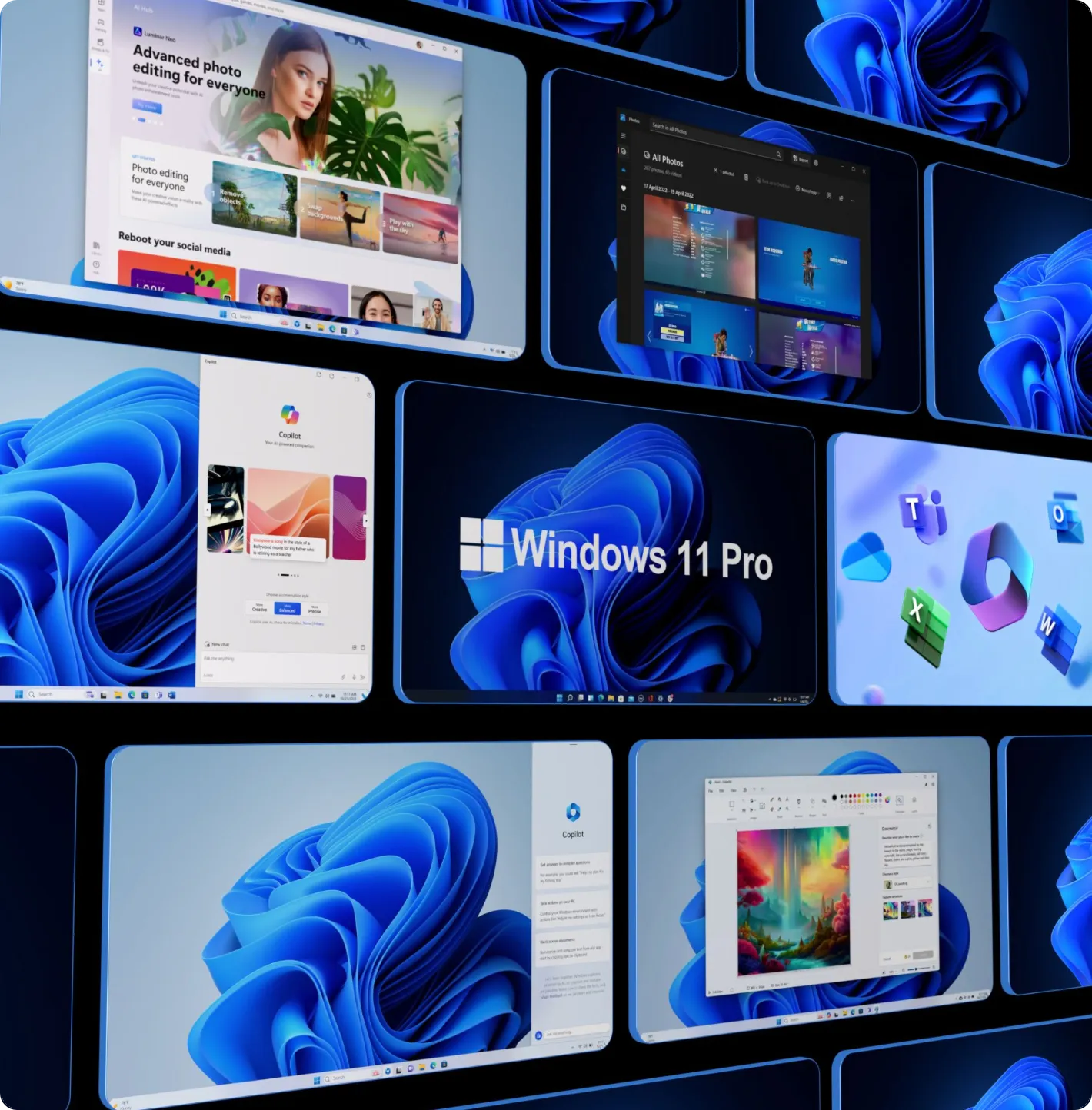

Windows 11 Pro comes with a modern design and multitasking tools to help you get it done faster easier, and with style.
Your own personal Al assistant built right in to do the heavy-lifting so you can do the extraordinary. With Copilot in Windows get real answers, inspiration, and solutions for your questions, projects, and to-do-list.
Stay connected and do more with Microsoft Teams and Windows Studio Effects. Now you can eliminate distracting sights and sounds and elevate your video calls experience.
Specifications
| Form Factor | ID-D Chassis: 135*132*46.9mm |
| CPU | Intel Core 14th Gen Meteor Lake H, Ultra 5 125H/Ultra 7 155H/Ultra 9 185H |
| Ultra 5/Ultra7 TDP 28W, Ultra 9 TDP 45W, Max operating range 60W | |
| Video Engine Processor | Intel Arc graphics |
| Memory | Dual channel DDR5 262PIN 5600MHz SODIMM, up to 64GB |
| Audio | HDA CODEC |
| Storage | 1 x PCIe SSD NVMe Gen 4, up to 2T |
| I/O Port | 1 x USB3.2 Gen2 Type-A + 1 x USB 2.0 Type-A (back panel) |
| 4 x USB3.2 Gen2 Type-A (front panel), one port support Always On | |
| 2 x USB 4.0 (back panel), one port support Type-C Power on (adapter in) | |
| 1 x 3.5mm stereo headset jack (front panel) | |
| 2 x RJ45 (back panel), 2.5 Gbps | |
| 2 x HDMI 2.0 (back panel) | |
| 1 x DC in (back panel) | |
| 1 x Power Button | |
| 1 x Kensington Lock | |
| 1 x SD Card 4.0 | |
| Internal Connector | 1 x M.2 key-M slot for PCIex4 Gen 4 NVMe SSD, 2280 |
| 1 x M.2 key-M slot PCIex4 or SATA, 2242 (BOM option) | |
| 1 x M.2 key-E slot for CNVi/PCIe WIFI, 2230 | |
| 1 x FAN | |
| 2 x USB 2.0 pin header | |
| 1 x RS485 header | |
| 1 x RS232 header | |
| 1 x 16-pin FPC SATA connector to connect an FFC SATA cable to a 7mm 2.5" SATA | |
| 1 x 5 pin header for SATA/HDD LED | |
| 1 x 9V ~36V Power Connector header | |
| Wireless Charging power (option) | |
| Speaker Header (option) | |
| LED | 2 x POWER LED (LED color: Power On:White, Always on, MS: White, Flash) |
| Ethernet | 10/100/1000/2500 Mbps RJ45 x 2 LED color (10/100:Off,1000 Mbps:Yellow, 2500 Mbps: Green) |
| Wireless LAN | Intel M.2 Wi-Fi 7, BE200, Bluteooth 5.4 |
| Kensington Lock | Yes |
| DTPM2.0 | Support DTPM 2.0 |
| Battery | RTC coin battery |
| Adapter | 19V power supply adapter (120W) with geo-specific AC cord (IEC C5) |
| PCBA Dimension | 127.6*126.1*1.6mm |
| Certification | CE, FCC, CB, CCC, RoHS |
| Operating system | Microsoft Windows*11 Pro 23H2, Support Moden Stadby |
| Accessory | VESA Mount (option) |
