Mini Air12 Mini PC

Might lies beyond the slight

Mini Air12 Mini PC

Might lies beyond the slight

Intel Alder Lake-N N100

Single-channel DDR5-4800 SODIMM

M.2 2280 PCIe Gen 3 x 4 SSD

3 Displays

Mini DP 1.4 * 1

USB3.2 Gen2 Type C * 1

Wi-Fi 6 Bluetooth 5.2

Intel

Alder Lake-N N100

Single-channel

DDR5-4800 SODIMM

M.2 2280 PCIe

Gen 3 x 4 SSD

3 Displays

Mini DP 1.4 * 1

USB3.2 Gen2 Type C * 1

Wi-Fi 6
Bluetooth 5.2

12th Gen Intel
Alder Lake N100 Processor

6 W
TDP

3.4 GHz
Max Turbo Frequency

4/4
Cores/Threads

6 MB
L3 Cache

PCMark 10

2911

Alder Lake N100

2891

Alder Lake N95

2138

Celeron N5095

+36%

12th Gen Intel
Alder Lake N100 Processor

6 W
TDP

3.4 GHz
Max Turbo Frequency

4/4
Cores/Threads

6 MB
L3 Cache

PCMark 10

2911

Alder Lake N100

2891

Alder Lake N95

2138

Celeron N5095

+36%

Higher frequency DDR5,
higher capacity and greater power efficiency.

Compared with DDR4, DDR5 tops transfer speed to 4800 MHz

DDR5

4800MHz

DDR4

3200MHz

DDR5

4800MHz

DDR4

3200MHz

Up to 2TB of PCIe Gen3 NVMe M.2 SSD

PCIe 3.0 SSD works 7 times faster on accessing data than SATA3 SSD, largely reduce loading time and improve work efficiency.

PCIe 3.0 NVMe SSD

3500 MB/s

SATA3 SSD

550 MB/s

PCIe 3.0 NVMe SSD

3500 MB/s

SATA3 SSD

550 MB/s

Supports 3 displays, up to 8K.

Connect 3 monitors simultaneously and boost your productivity and entertainment experience like never before

Multifunctional connections to satisfy all your needs

Fast and stable wireless connection

Wi-Fi 6 and Bluetooth 5.2 on the MiniAir 12 provide smooth speeds and stable transmissions even when multiple devices are connected. Reduce delays so you can complete tasks efficiently anytime, anywhere.

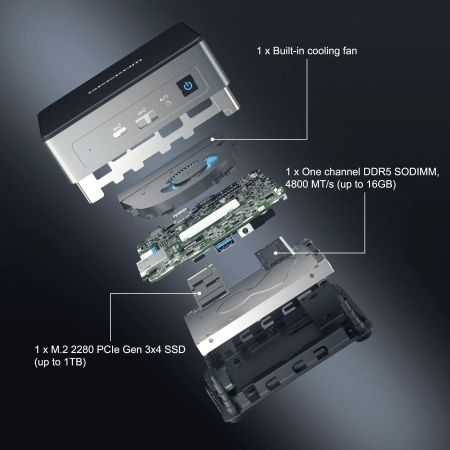

High efficiency and low noise cooling system

The built-in specially designed fan runs smoothly and quietly, providing excellent cooling effect and ensuring stable operation of the machine for a long time. The fan is only 45.7 db at maximum pressure, keeping your working environment quiet.

Extremely compact

Air12 Mni PC measures 4.6 x 4.4 x 1.4 inches and weighs as low as 17.6 ounces. Easily to tuck into your bag and carry it with you.

Say goodbye to messy desk

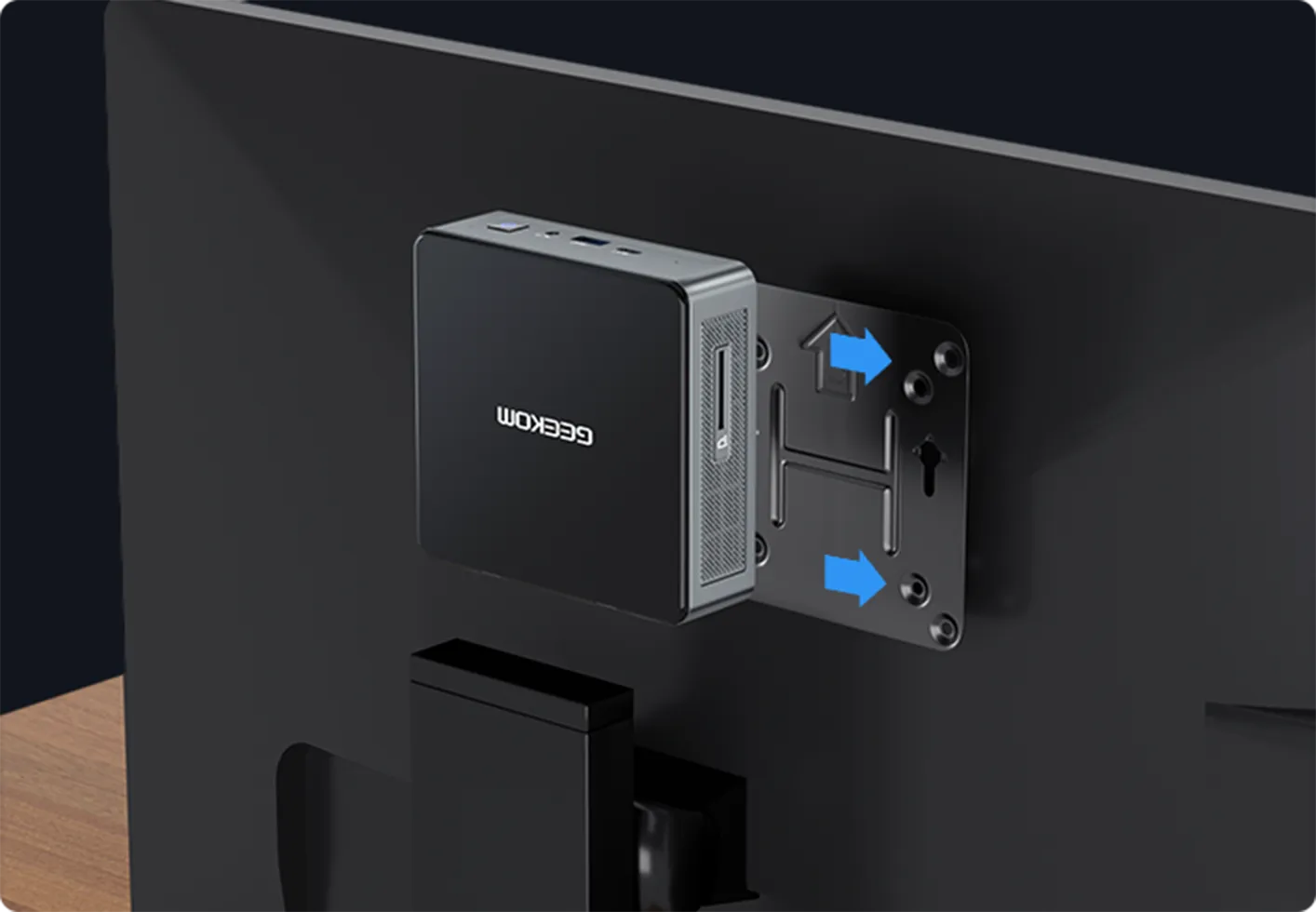

With our VESA mount, feel free to hide your mini PC on the back of the monitor.

Extremely compact

Air12 Mni PC measures 4.6 x 4.4 x 1.4 inches and weighs as low as 17.6 ounces. Easily to tuck into your bag and carry it with you.

Say goodbye to messy desk

Air12 Mni PC measures 4.6 x 4.4 x 1.4 inches and weighs as low as 17.6 ounces. Easily to tuck into your bag and carry it with you.

Air12 Mini PC can be used for

Meeting

Design

Home Teacher

Education

Call center

Form Factor	117 x 112 x 34.2 mm
CPU	Intel Alder Lake N100(4 Cores, 4 Threads, 6MB Cache, up to 3.4 GHz)
	TDP 6W
Video Engine Processor	Intel UHD Graphics 12th
Memory	One channel DDR5 SODIMM, 4800MT/s, up to 16GB
Audio	HDA CODEC
Storage	1 x SSD (2280 M.2 SATA & PCIE Gen 3*4), 512G, up to 1TB

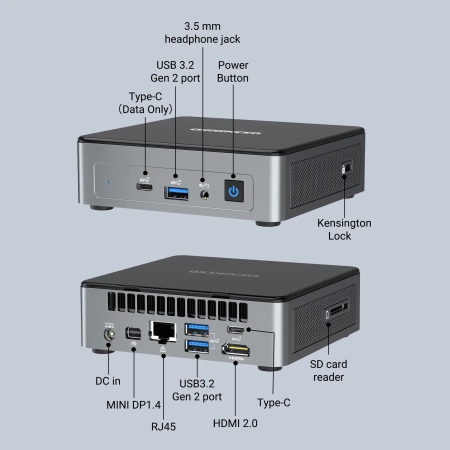

I/O Port	1 x USB 3.2 Gen 2 x 1 port(front panel) and 2 x USB 3.2 Gen 2 port(back panel)
	1 x TYPE-C with DP 1.4 Alt Mode(back panel) and 1 x TYPE-C Data Only(front panel）
	1 x SD card reader
	1 x 3.5 mm headphone jack (front panel, support Apple HeadPhone)
	1 x RJ45(back panel)
	1 x HDMI 2.0(back panel)
	1 x Mini DP 1.4(back panel)
	1 x DC in(back panel)
	1 x PowerButton
	1 x Kensington Lock
Internal Connector	1 x M.2 key-M slot(PCIe/SATA)
	1 x FAN
	1 x RTC
	1 x USB2
LED	1 x POWER LED(Power On: Blue, S3: Flashing Orange)
	1 x SATA SSD:Red PCIE SSD:Green
Ethernet	Intel® 10/100/1000 Mbps Ethernet
LED	10-100M: Flashing Orange, Green, 1000M: Flashing Orange, Green No light
Wireless LAN	onboard WiFi6, BT5.2 AW-XM548NF
Kensington Lock	Yes
Battery	RTC coin battery
Adapter	Automatics Voltage adjustment between 100 and 240V AC, 50/60Hz, 45Watts(19V/2.36A), 3Pin, 1.8 meters long & 65W(19V/3.42A)
PCBA Dimension	109.1 x 107.63 mm
Certification	CE, RoHS, FCC, CEC, CB, PSE, TELEC
Operating system	Windows 11 21H2, PRO

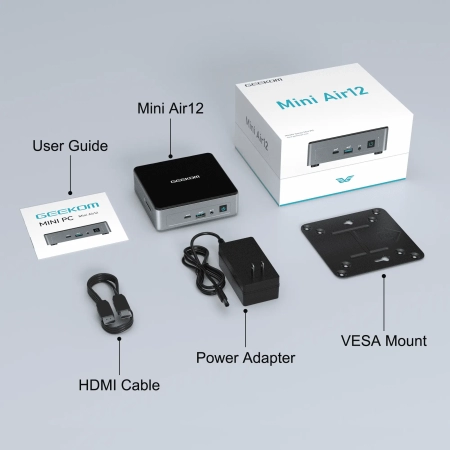

Accessory	VESA Mount
