$639.00
Buy 2 pieces and get an EXTRA $20 discount, use code GEEKSP02.
Buy 3 pieces and get EXTRA $35 discount, use code GEEKSP03.
Buy 4 pieces and get EXTRA $50 discount, use code GEEKSP04.
12th Gen Intel® Core™
i5/i7 Processor
12 Cores, 16 Threads
Intel® Iris Xe
Graphics eligible
Multiple Screens Display
Supports up to 8K resolution
Windows 11 Pro
comes pre-installed
Dual-channel DDR4-
3200 SODIMM
Expandable up to 64GB
M.2 2280 PCIe 4.0
M.2 2242 SATA slot
2.5" SATA HDD slot
Market-leading WiFi 6E
Supports a new 6GHz band,
more stable and speedy
Supports up to 2.5Gbps,
delivering a smooth
network experience

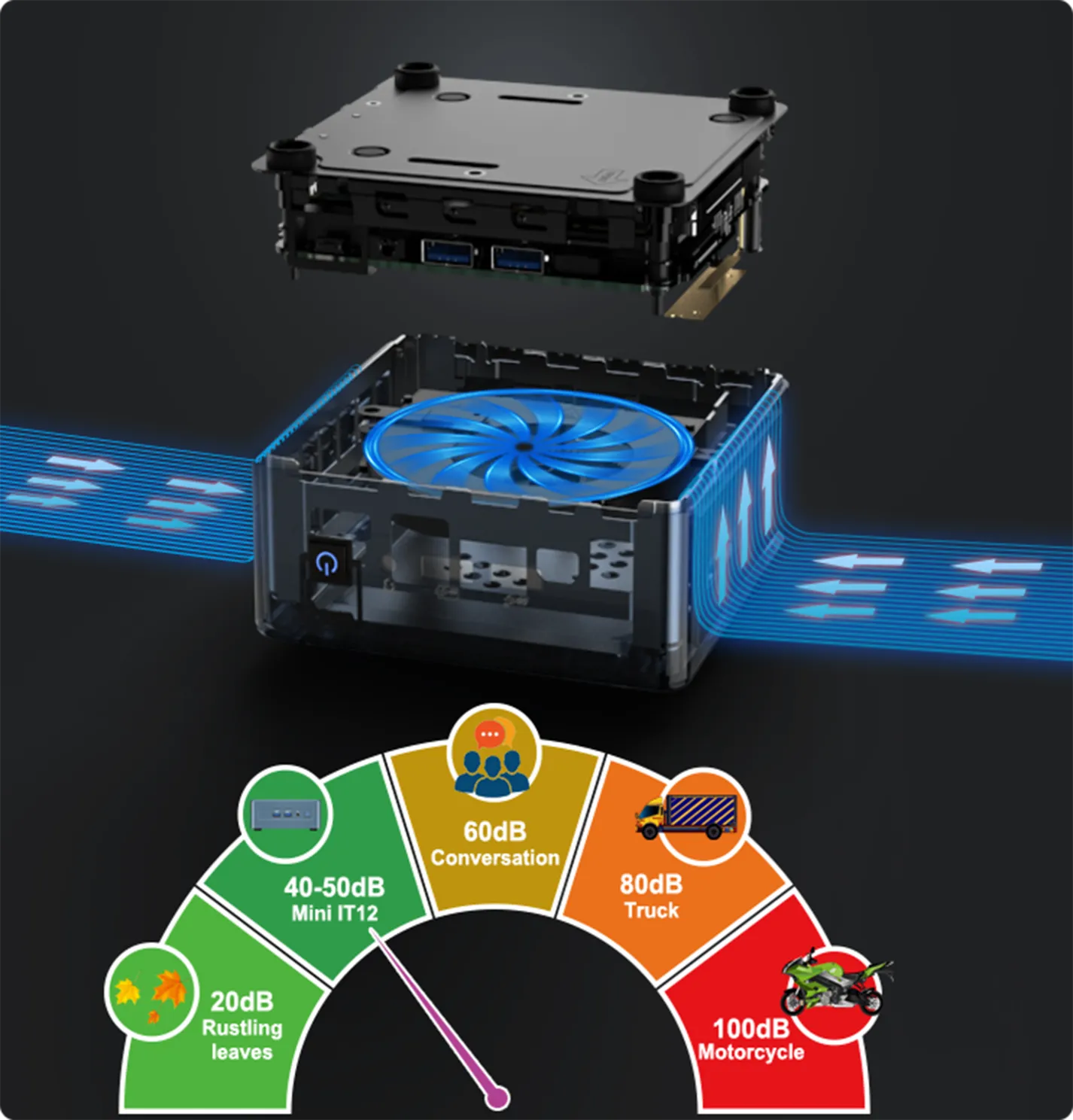

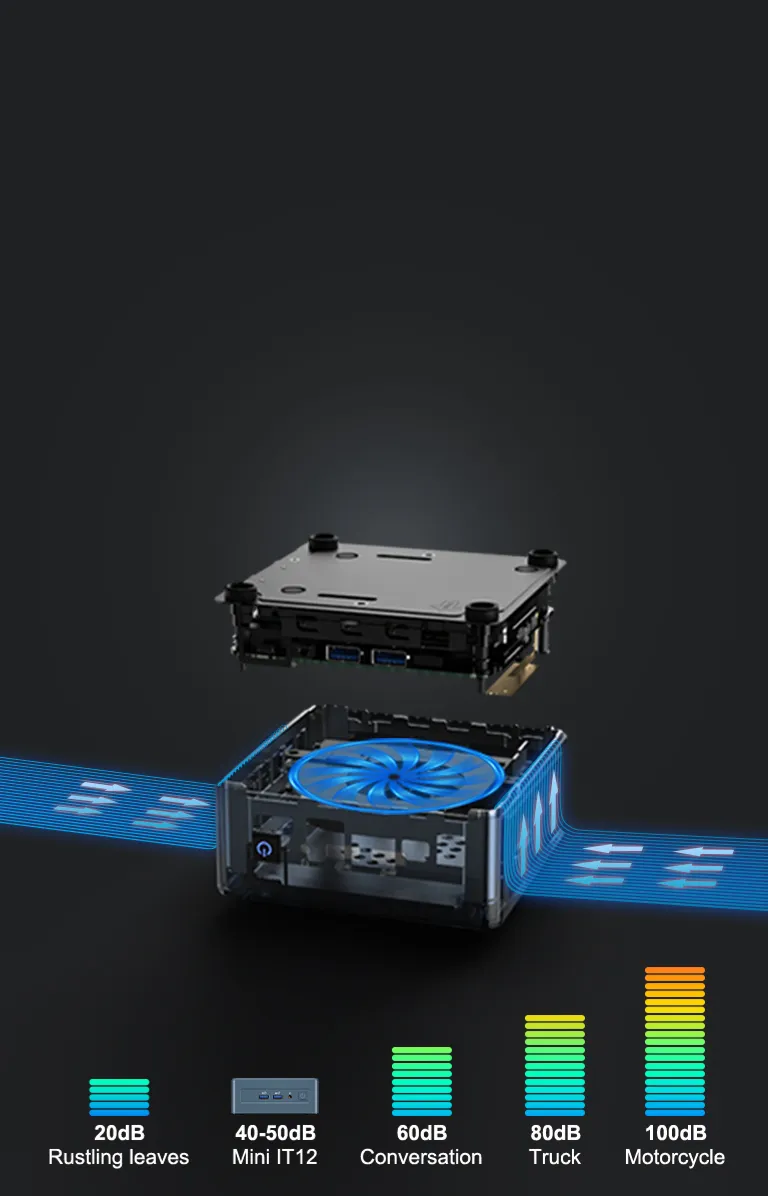

Efficient Cooling System
1. The latest 12th Gen Intel Core processor provides an unprecedented boost to your multitasking.
2.WiFi 6E, with low latency and less interference, delivers a rock-solid connection even in congested networks
with multiple devices.
3. The 2.5GbE LAN port supports intermediate speeds, offers true multi-gigabit performance, and runs at designated speeds without limitations.
4. The Mini IT12’s numerous interfaces and uncompromised connectivity make it easy to upload and transfer
files or connect to external devices.
5. With an M.2 2280 PCIe SSD onboard and an additional M.2 2242 SATA SSD slot, the Mini IT12 has more expansion options.

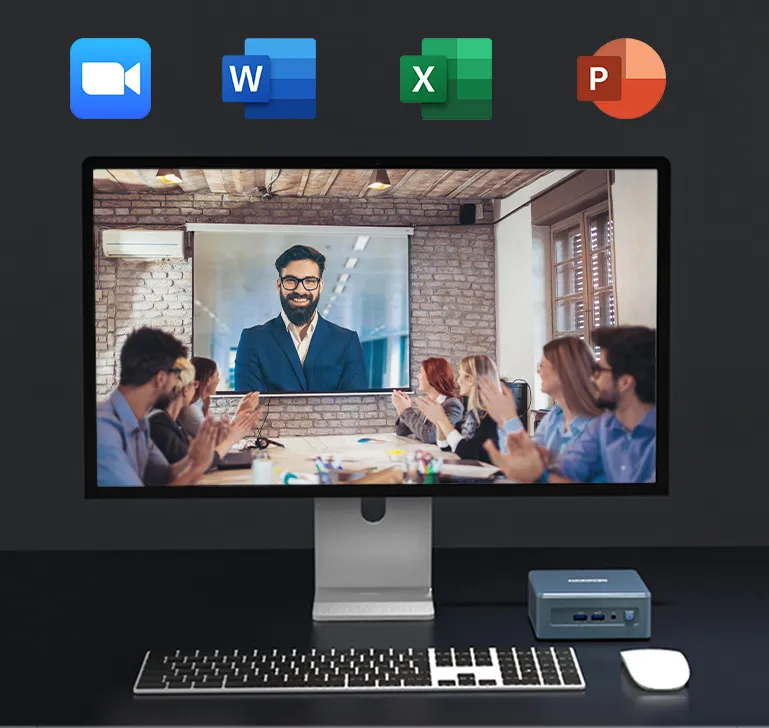

6. Mini IT12 can handle heavy tasks as well as basic tasks with ease for all of your business needs.

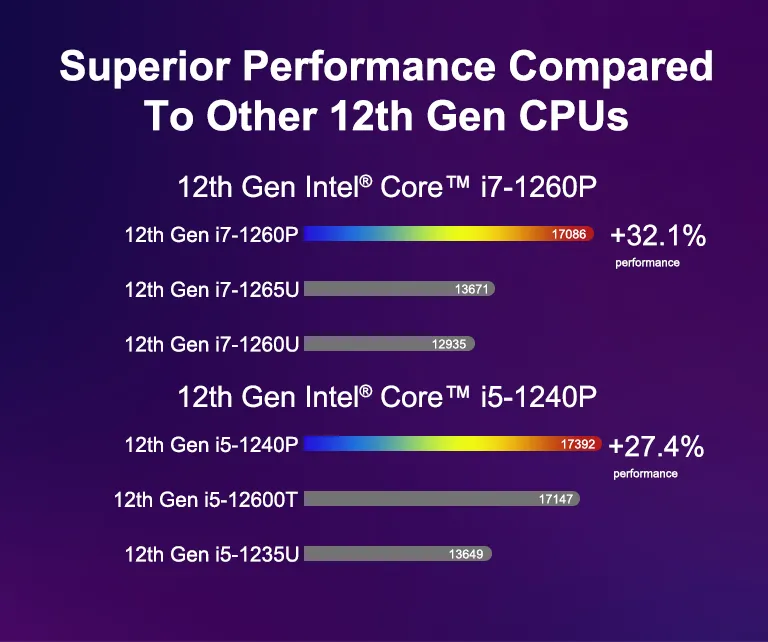

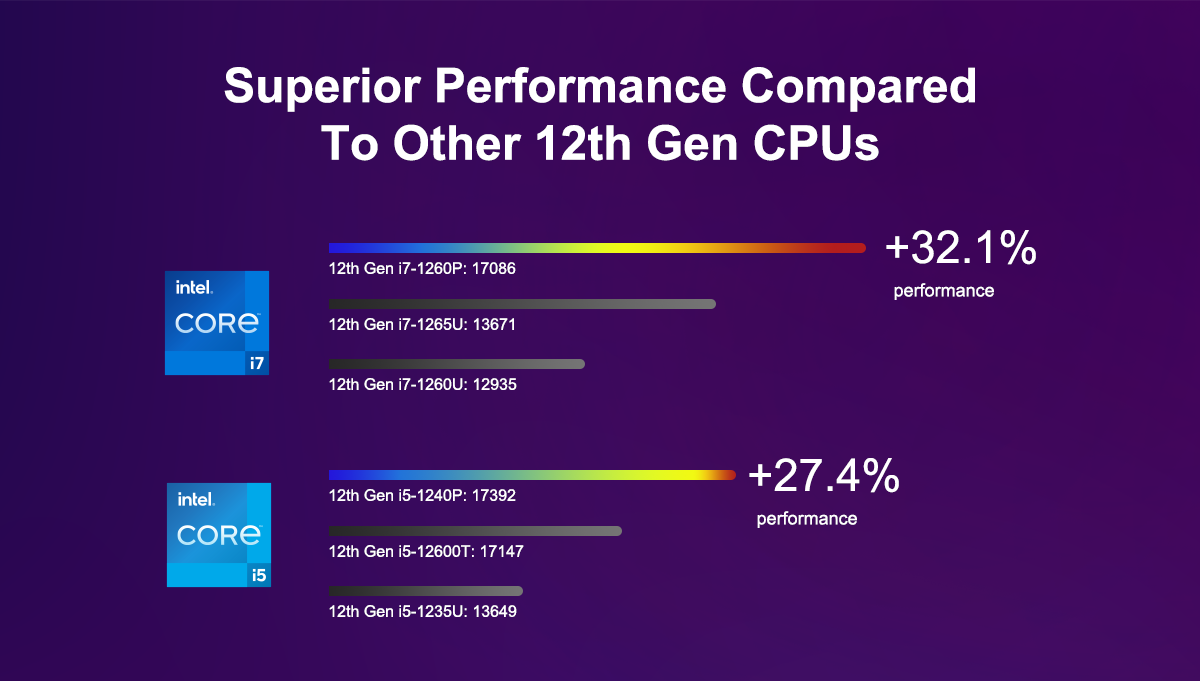

Take Mini IT12 to new heights of performance with the new 12th Generation Intel® Core™ processor. You can get more done faster thanks to its more powerful CPU. The Intel® Iris® Xe Graphics eligible allows you to create visually stunning images. With the video decoding engine, you can handle multiple 4k and 8k video streams.

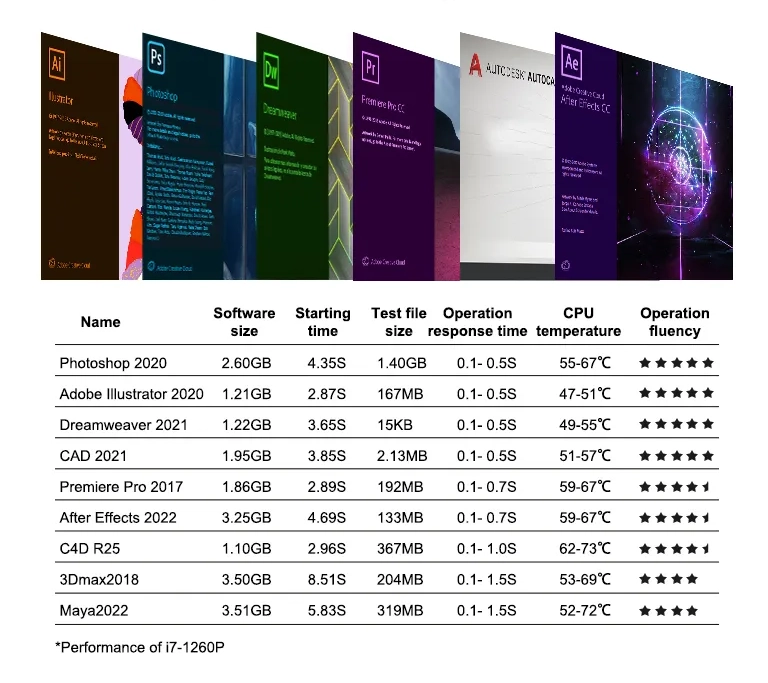

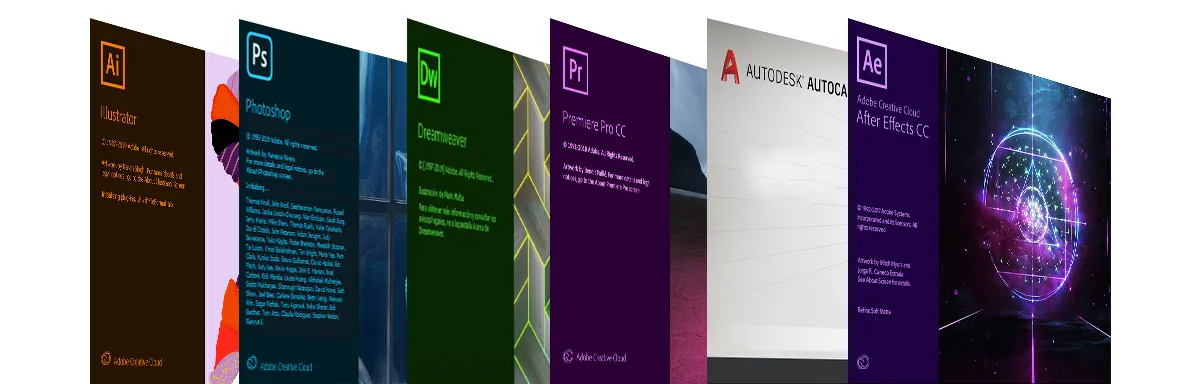

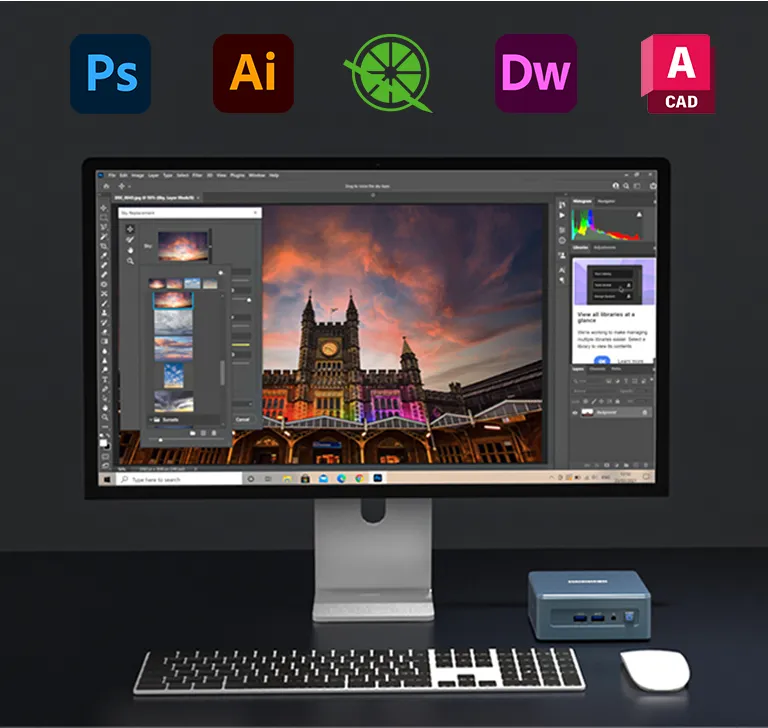

| Name | Software size | Starting time | Test file size | Operation response time | CPU temperature | Operation fluency |
|---|---|---|---|---|---|---|
| Photoshop 2020 | 2.60GB | 4.35S | 1.40GB | 0.1- 0.5S | 55-67℃ |  |
| Adobe Illustrator 2020 | 1.21GB | 2.87S | 167MB | 0.1- 0.5S | 47-51℃ | |
| Dreamweaver 2021 | 1.22GB | 3.65S | 15KB | 0.1- 0.5S | 49-55℃ | |
| CAD 2021 | 1.95GB | 3.85S | 2.13MB | 0.1- 0.5S | 51-57℃ | |
| Premiere Pro 2017 | 1.86GB | 2.89S | 192MB | 0.1- 0.7S | 59-67℃ | |
| After Effects 2022 | 3.25GB | 4.69S | 133MB | 0.1- 0.7S | 59-67℃ | |
| C4D R25 | 1.10GB | 2.96S | 367MB | 0.1- 1.0S | 62-73℃ | |
| 3Dmax2018 | 3.50GB | 8.51S | 204MB | 0.1- 1.5S | 53-69℃ | |
| Maya2022 | 3.51GB | 5.83S | 319MB | 0.1- 1.5S | 52-72℃ | |
*Performance of i7-1260P

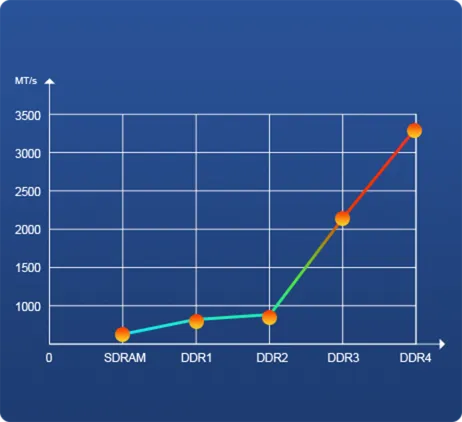

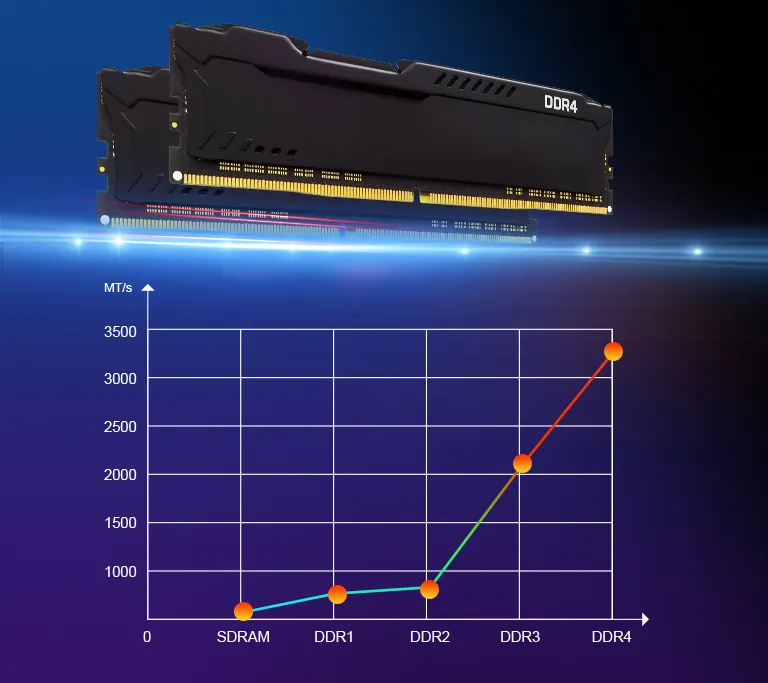

The Mini IT12 supports dual-channel DDR4 memory with a maximum frequency of 3200MT/s, resulting in significantly improved performance. You can enjoy a smoother workflow and higher efficiency while gaming, doing graphics design, and more.

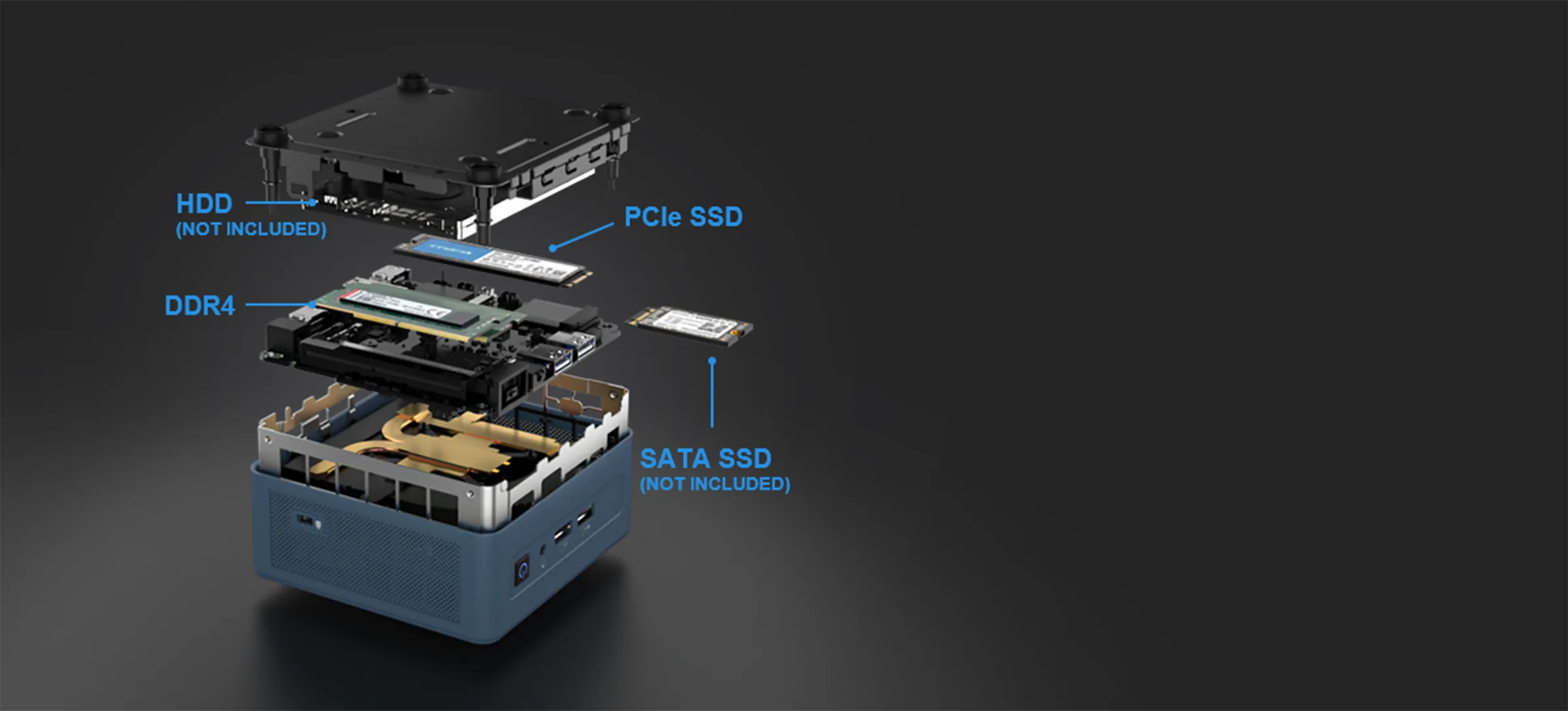

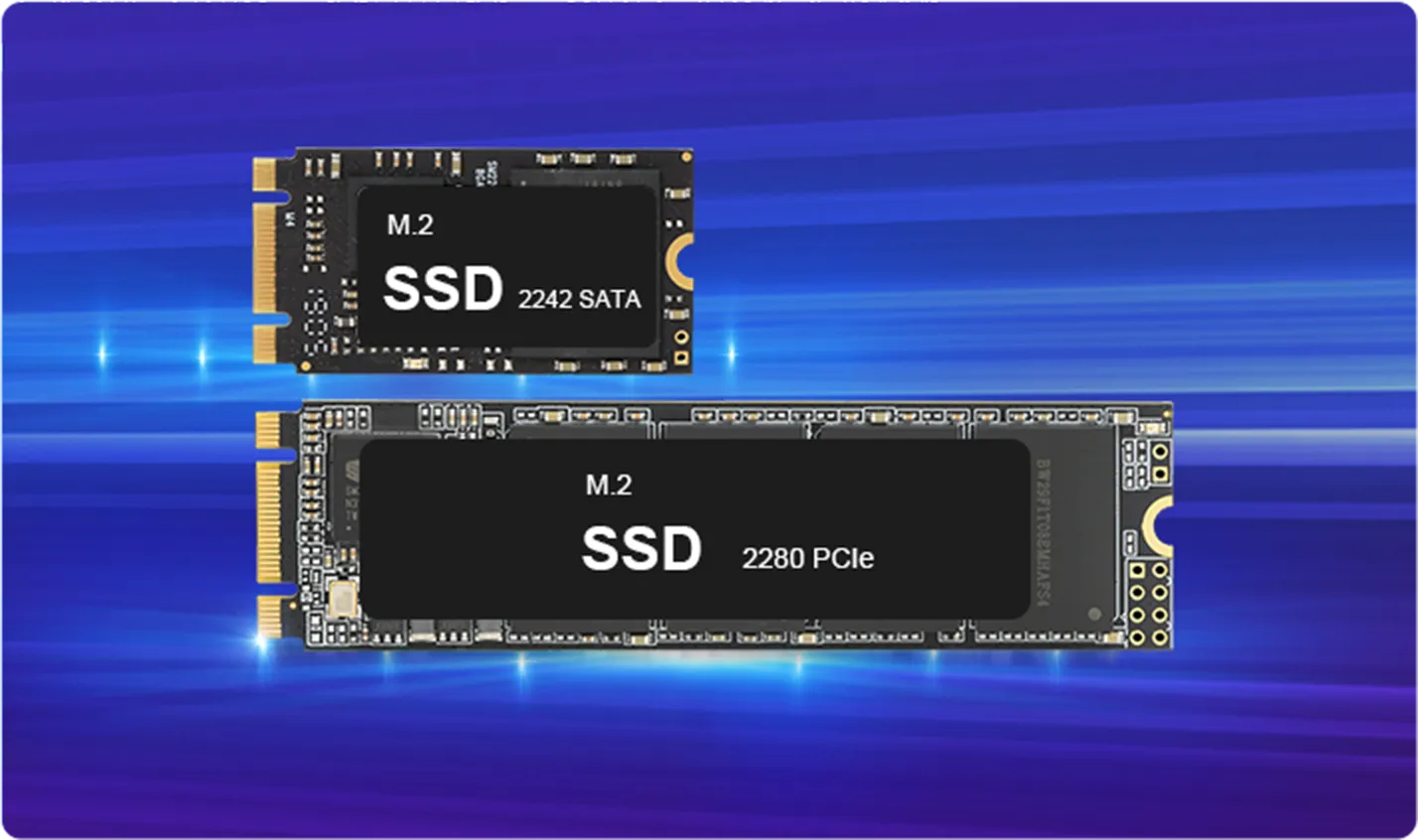

The Mini IT 12 includes an M.2 2280 PCIe Gen 4 x4 SSD with read speeds of up to 5000+ MB/s and write speeds of up to 4400+ MB/s. It also has an M.2 2242 SATA SSD slot for additional storage.

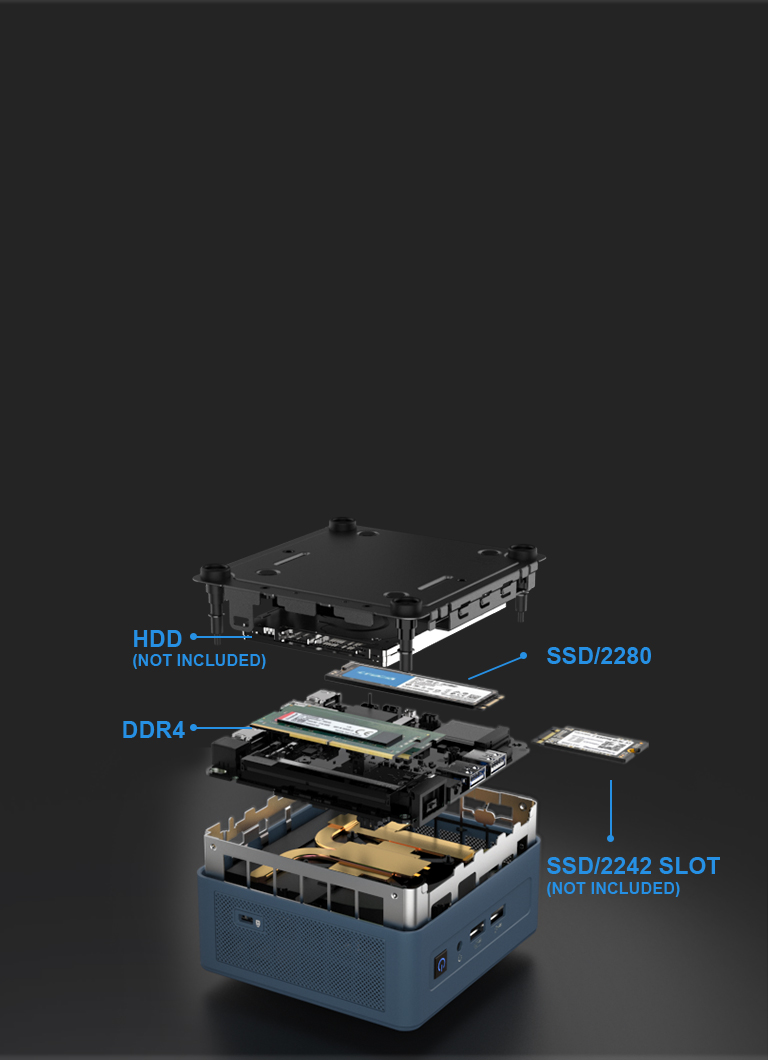

The GEEKOM Mini IT12 has an M.2 2280 PCIe
Gen 4 x4 SSD (512GB or 1TB pre-installed)
that supports up to 2TB, and has an M.2 2242
SATA SSD slot allowing for up to 1TB of storage
expansion. Its 2.5-inch SATA drive bay allows
up to 2TB of storage expansion. This means
that the Mini IT12’s total storage capacity can
reach a mind-boggling 5TB! You can spend less
time waiting and more time working or playing
because your app and program load faster.

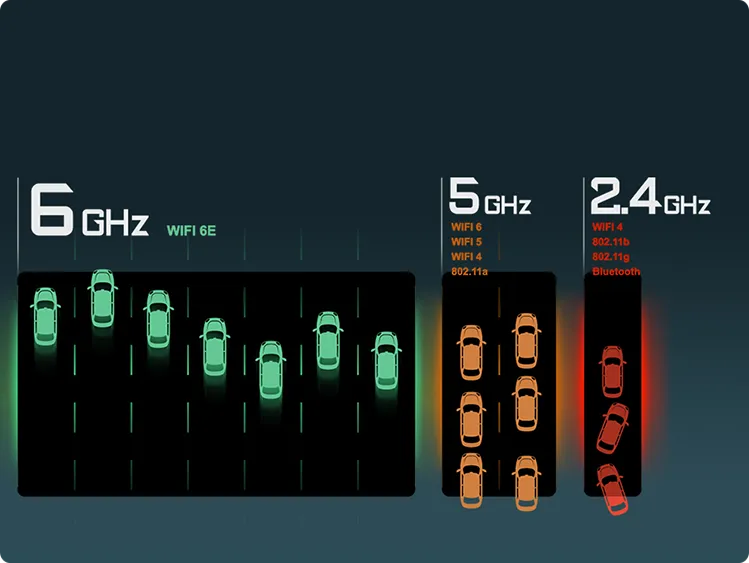

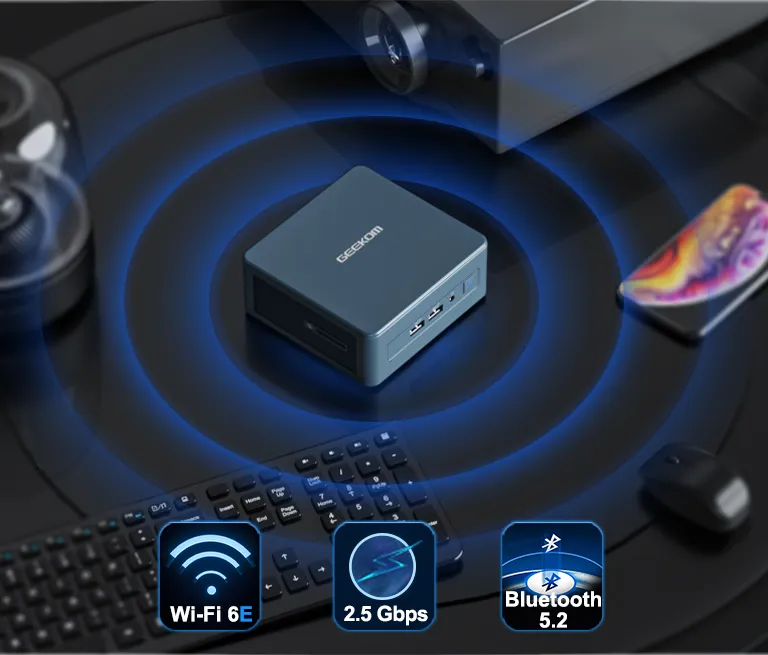

The Intel® Wi-Fi 6E introduces a new 6 GHz band, allowing for a generational advance in Wi-Fi performance, traffic management, improved latency, and interference avoidance. Even if multiple people are using the network at the same time, you can enjoy a silky smooth experience while watching HD videos or playing AR/VR games.
The Intel® Wi-Fi 6E introduces a new 6 GHz band, allowing for a generational advance in Wi-Fi performance, traffic management, improved latency, and interference avoidance. Even if multiple people are using the network at the same time, you can enjoy a silky smooth experience while watching HD videos or playing AR/VR games.

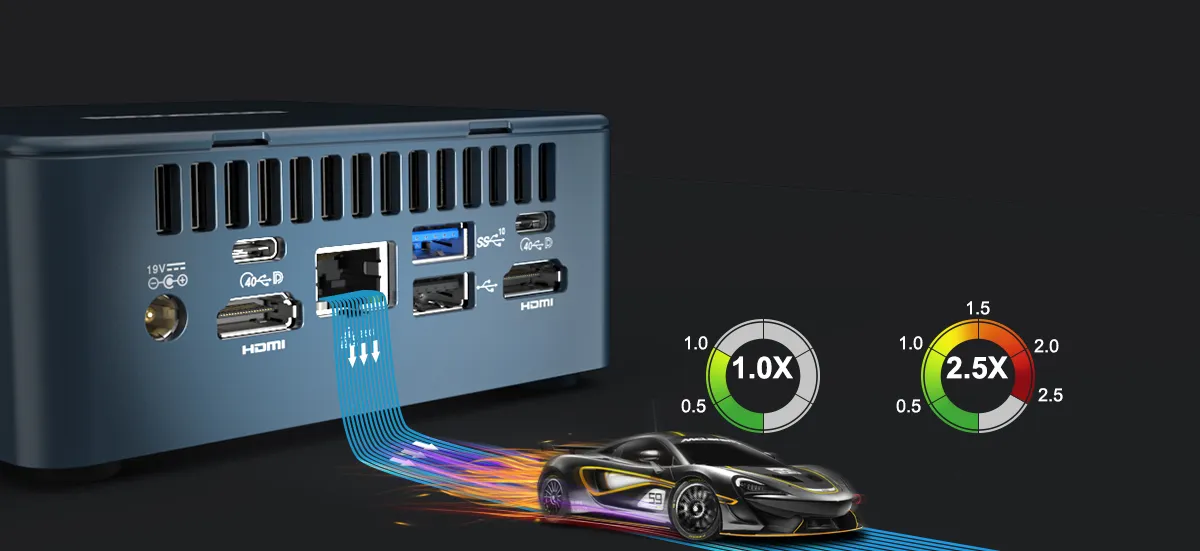

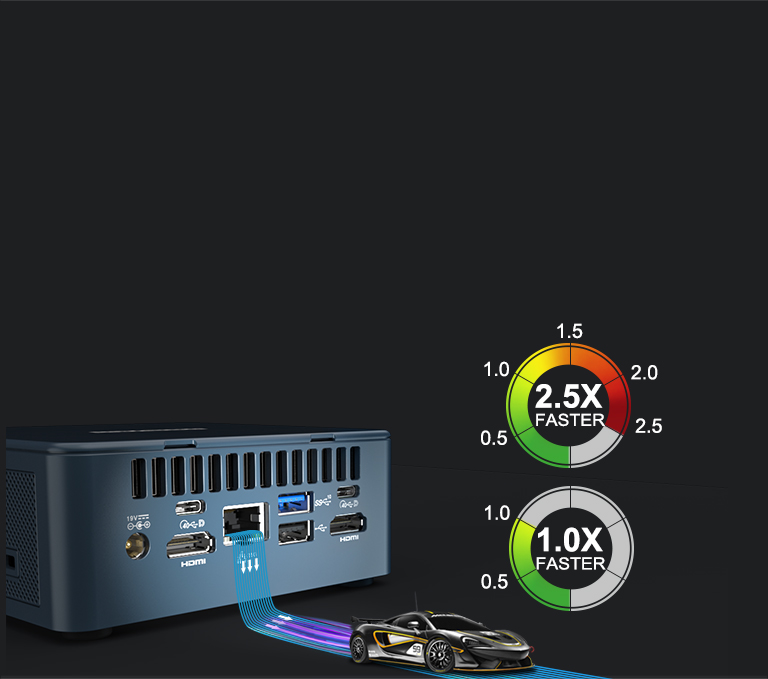

The speed of the 2.5G LAN port is 2.5 times faster than
a standard Gigabit Ethernet port, making it as fast as a
racing car! When uploading movies or files over a local
area network, the speed can easily exceed Gigabit
speed.

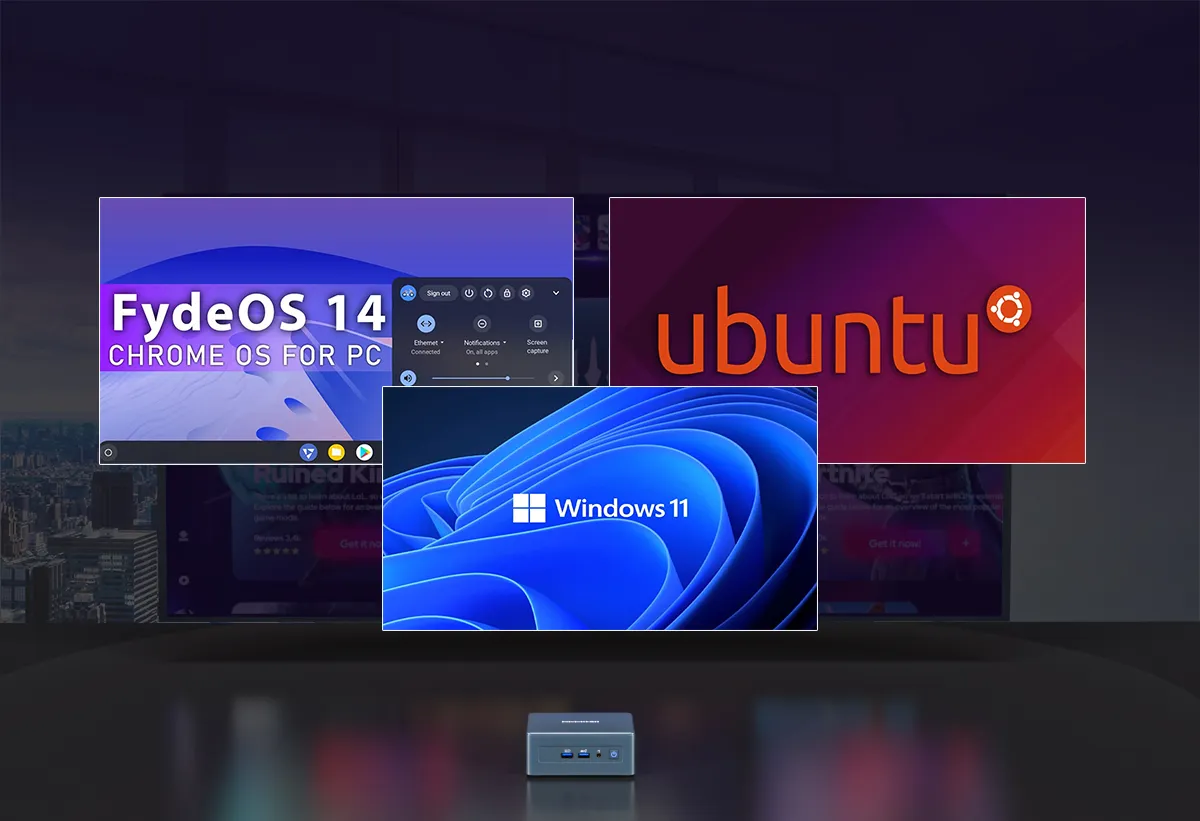

The Mini IT12, which comes pre-installed with Windows 11 Pro and is compatible with other popular operating systems (including Linux, Android x86, and FydeOS), is designed to offer a more intuitive and personalized user experience, as well as to maximize your convenience and productivity.

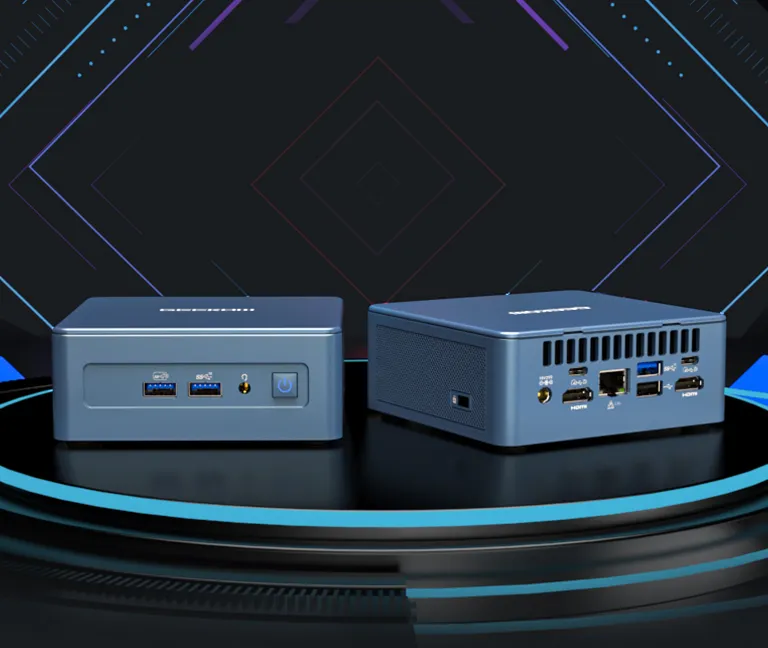

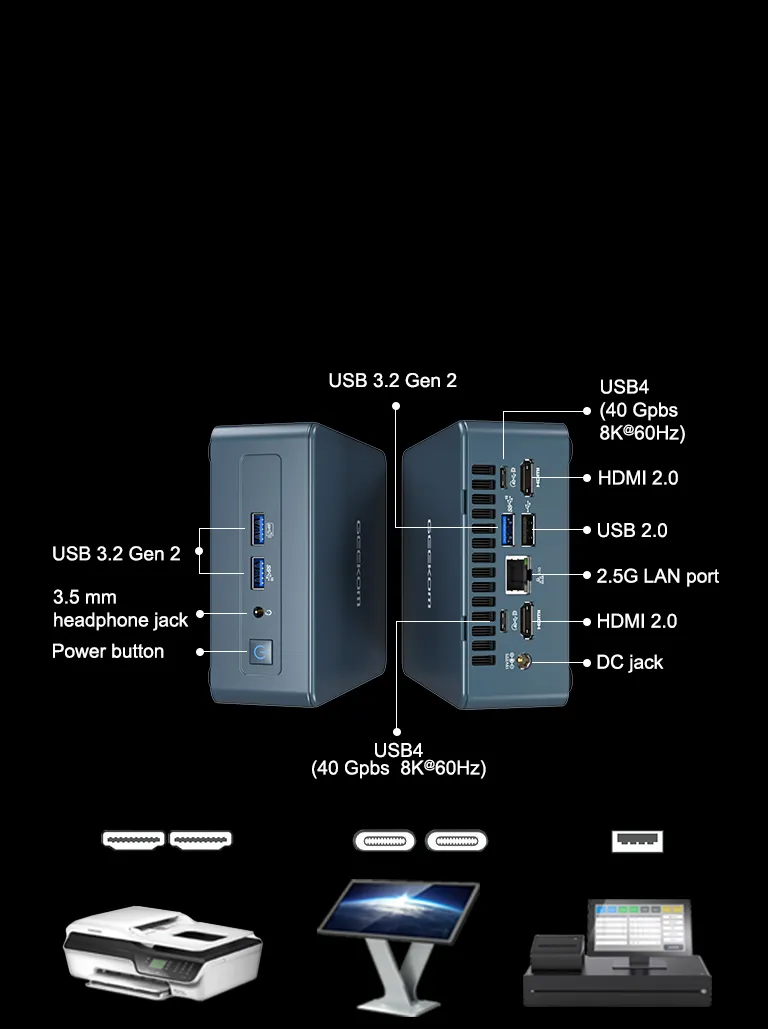

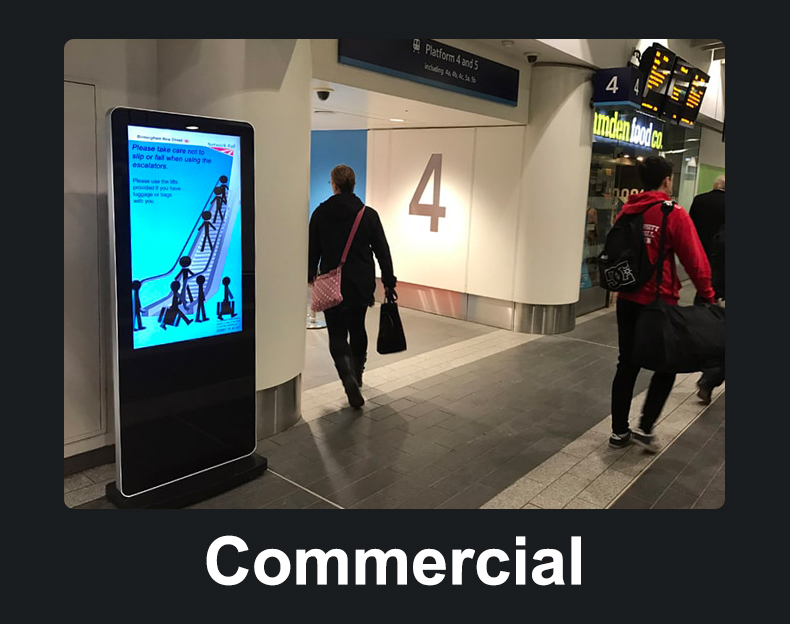

The GEEKOM Mini IT12 comes with a slew of usability features that can be applied to digital signage, POS systems, and smart vending machines. It has numerous ports, including two HDMI, two USB 4.0, four USB, and a 2.5 GbE LAN, allowing for display audio, VR, barcode scanners, and receipt printers.

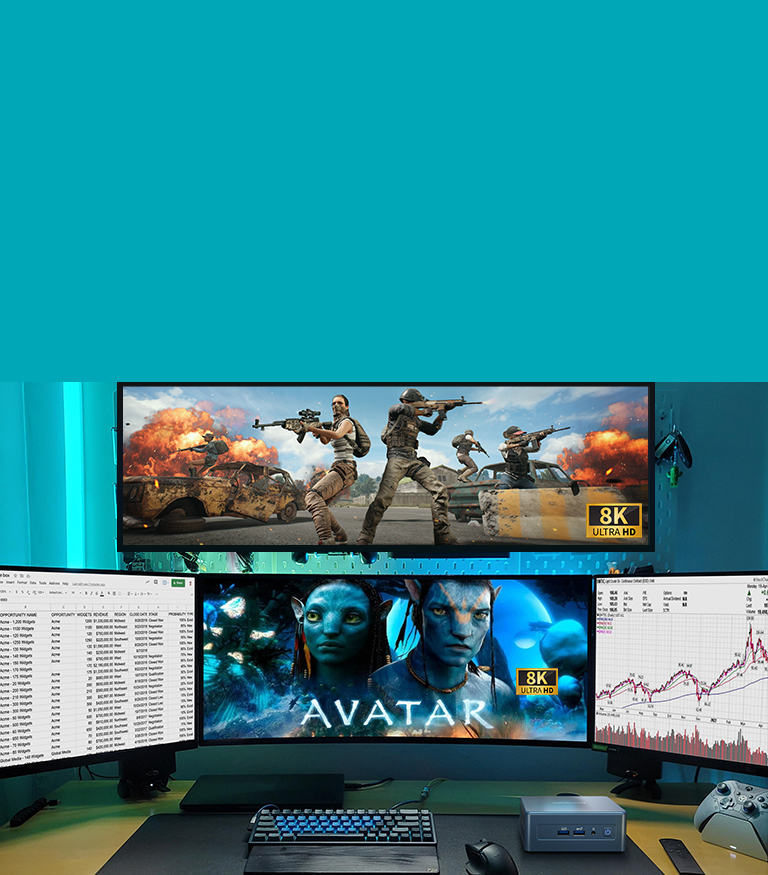

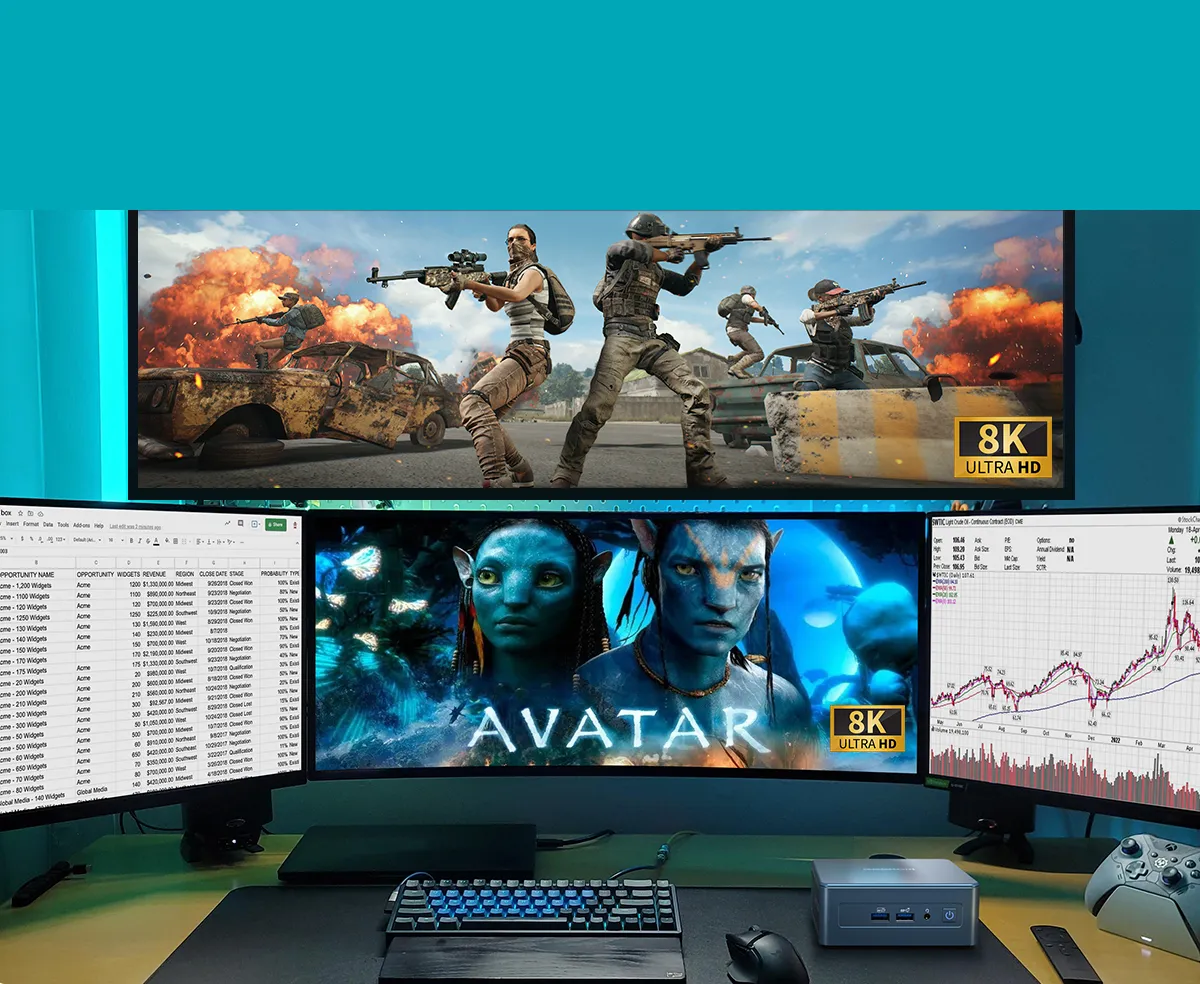

The GEEKOM Mini IT12 can power two 8K displays and two 4K displays, allowing four monitors to display different content simultaneously via its two USB4 ports and two HDMI 2.0 ports. The two USB4 ports are specially designed to support up to 8k resolution, helping you manage tasks in multiple windows with ease.
* The data were obtained from the GEEKOM’s laboratory simulation test and may vary depending on how the device is used.
The Mini IT12 has passed a stringent quality control test, including noise, vibration, drop, and thermal shock, to ensure that it meets GEEKOM standards and exceeds industry standards.
* The data were obtained from the GEEKOM’s laboratory simulation test and may vary depending on how the device is used.
| Size | 117 x 112 x 45.6 mm | |
| Weight | 652 g | |
| CPU | 12th Gen Intel® Core™ i7-1260P (12 Cores, 16 Threads, 18MB Cache, up to 4.70 GHz) 12th Gen Intel® Core™ i5-1240P (12 Cores, 16 Threads, 12MB Cache, up to 4.40 GHz) |
|
| Graphics | Intel® Iris® Xe Graphics eligible | |
| Memory | Dual-channel DDR4-3200 SODIMM, 16GB/32GB, expandable up to 64GB | |
| Storage |
1 x M.2 2280 PCIe Gen 4 x4 SSD, 512GB or 1TB onboard, expandable up to 2TB 1 x 2.5" SATA HDD (7mm) slot, expandable up to 2TB |
|
| Operating System | Windows 11 Pro | |
| Bluetooth® Wireless Technology | Bluetooth® v5.2 | |
| Ethernet | Intel® 10/100/1000/2500 Mbps RJ45 | |
| Wireless LAN | Intel® Wi-Fi 6E AX211 | |
| Kensington Lock | Yes | |
| Adapter | 19V power adapter, 90W, with geo-specific AC cord (IEC C5) | |
| I/O Ports | 3 x USB 3.2 Gen 2 ports 1 x USB 2.0 port 2 x USB4 ports 1 x SD card reader 1 x 3.5 mm headphone jack 1 x 2.5GbE LAN port 2 x HDMI 2.0 ports 1 x DC jack 1 x Power button |
|
| What’s In The Box | 1 x Mini IT12 Mini PC 1 x VESA Mount 1 x Power Adapter 1 x HDMI Cable 1 x User Guide 1 x Thank You Card |
|
