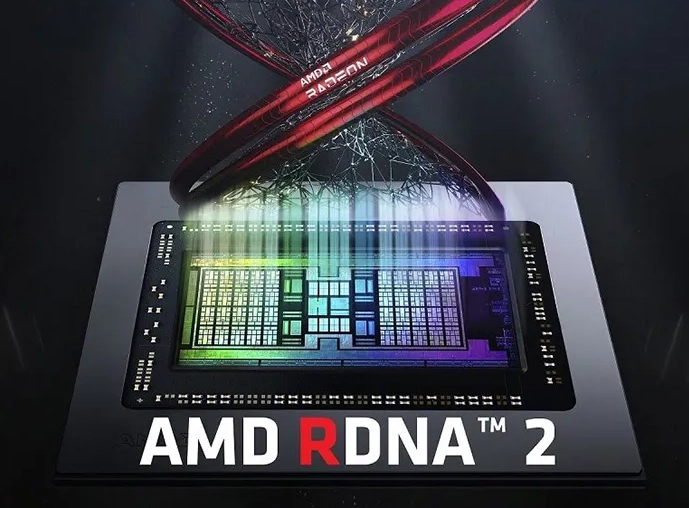

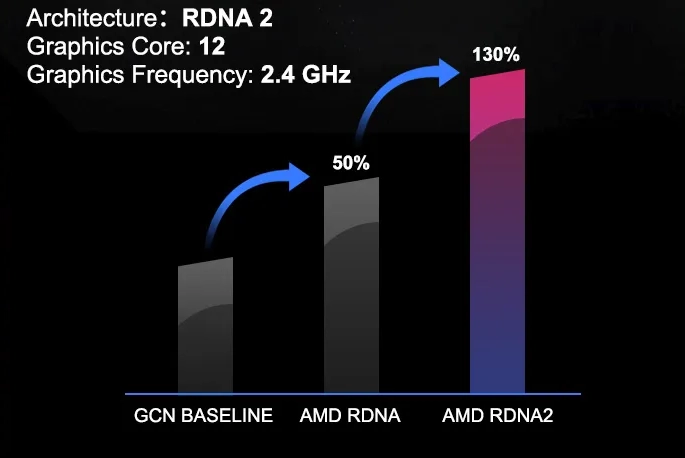

The new RNDA2 core architecture and ray tracing support are designed with gaming DNA in mind, presenting vibrant graphics for easier creation.
The AS 6 features DDR5 4800 MHz memory, which is 1.5 times faster and 8% more energy-efficient than DDR4 3200 MHz memory, delivering outstanding performance for everyday computing tasks.
Equipped with a new-generation PCIe 4.0 SSD, the data bandwidth is increased by around 100% compared to the previous generation, breaking through the speed limit and providing ultra-fast response speeds. There is also a built-in 2.5-inch hard drive bay, making it easy to expand storage capacity to meet large file storage needs.
The AS 6, with its AMD WiFi 6E, Bluetooth 5.2, and 2.5GbE LAN port, allows more devices to connect in congested environments, reducing latency and ensuring smooth video streaming or conferencing, providing lightning fast networking and data transfer speeds for efficient multitasking.
A new thermal module featuring a special heat pipe provides improved heat dissipation, while an aluminum heatsink ensures enhanced conductivity, allowing the compact AS 6 to deliver desktop-level performance.
The Anti-Dust Self-Cleaning System not only keeps the heatsinks clean but also efficiently ejects dust and other particles to prolong the system’s lifespan. Furthertmore, the fan is never overworked, resulting in a quieter workstation with less noise.

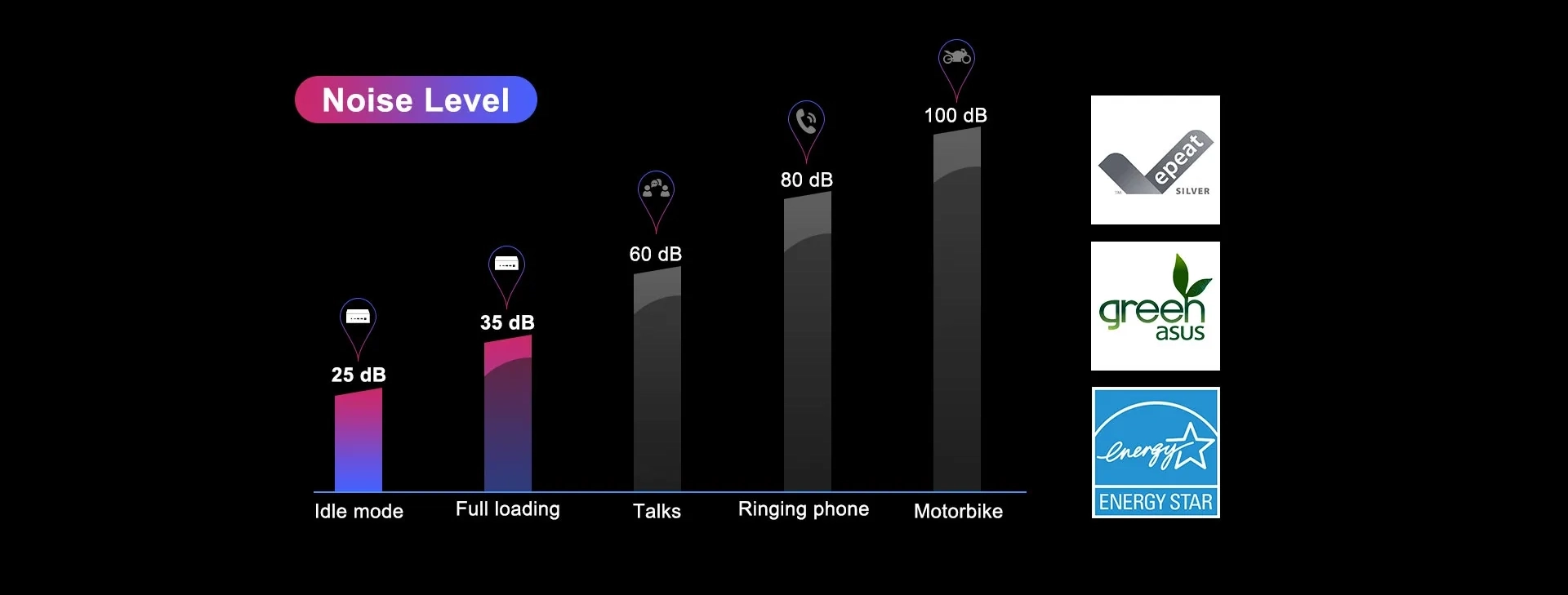

This ENERGY STAR® certified tiny machine produces less than 35 decibels of noise when fully loaded, making it ideal for gaming, working in the office, or entertaining at home for an excellent experience.

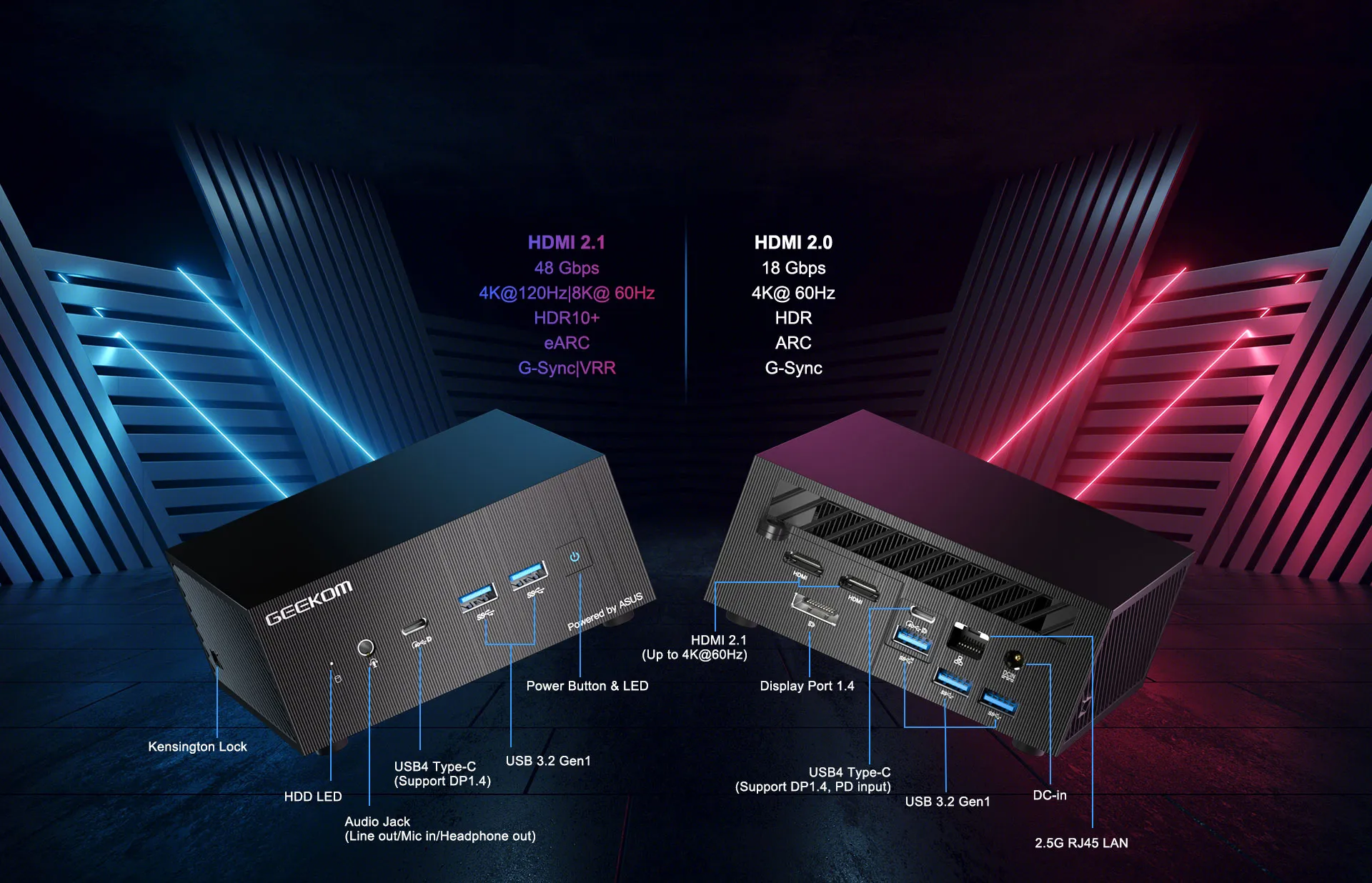

GEEKOM AS 6 is packed with all the I/O ports you need for easy connectivity to the latest devices and peripherals. It features two USB-C ports, both of which support the DP1.4 protocol and 15W charging, with one of them also supporting PD input. The HDMI 2.1 port boasts a bandwidth of up to 48 Gbps, allowing for 4K 120HZ/8K 60Hz video output and a wide range of peripheral connections.
The AS 6 features two high-speed Thunderbolt 4 ports that enables the connection of portable monitors and an 8K@60Hz display, offering an impressive data transmission speed of up to 40Gbps, as well as 5V 3A power delivery.
Tested to meet the rigorous MIL-STD-810H* standard, the GEEKOM AS 6 can withstand extreme temperatures, altitude, humidity, and frequent drops and vibrations, ensuring reliable performance even in the most challenging environments.

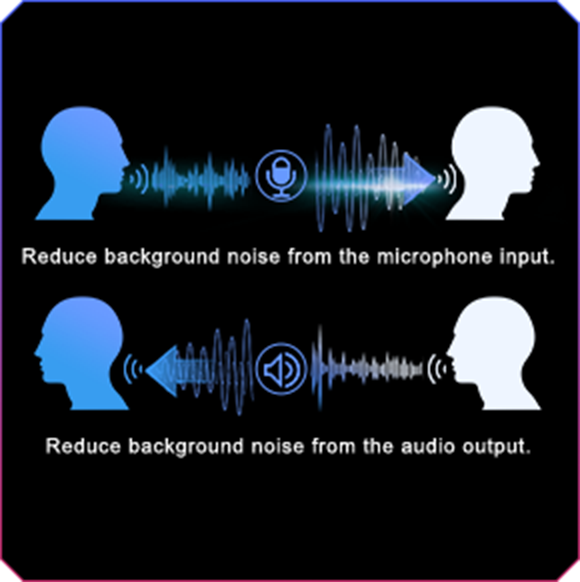

Filters out unwanted noise from the microphone and incoming audio, ensuring crystal-clear voice communication.
Provides brief descriptions to help identify various situations and choose the best diagnostic checkup.

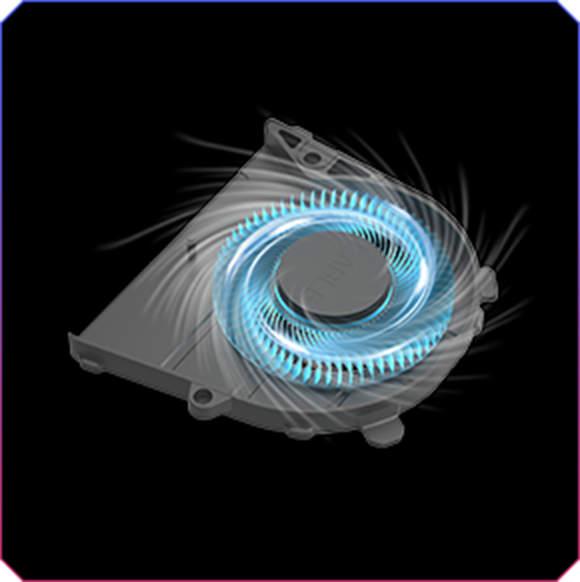

Give you the flexibility to choose between using the maximum fan speed during heavy loads and switching to a lower speed for silent operation.
| Size | 120 x 130 x 58 mm (0.9L) | |
| Weight | 0.9 kg | |

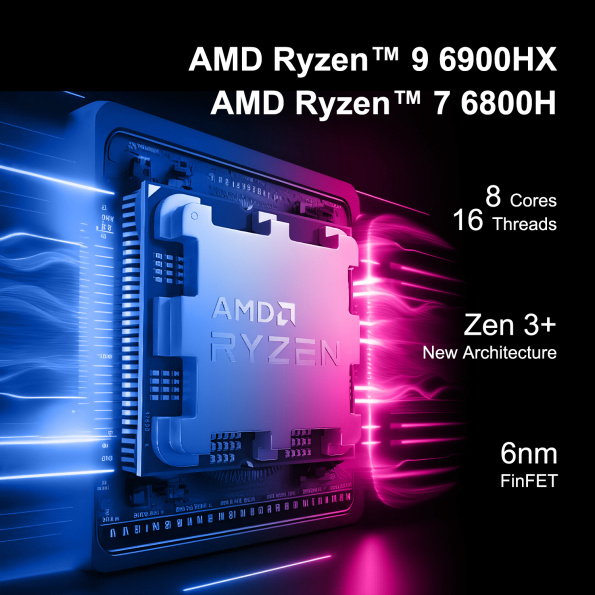

| CPU | AMD Ryzen™ 9 6900HX (8 Cores, 16 Threads, 16MB Cache, 3.3 GHz~ 4.9 GHz) AMD Ryzen™ 7 6800H (8 Cores, 16 Threads, 16MB Cache, 3.2 GHz~ 4.7 GHz) cTDP: 35W |
|
| Graphics | Integrated - AMD Radeon™ Graphics 680M | |
| Memory | Dual-channel DDR5-4800 SODIMM, supports up to 32GB | |

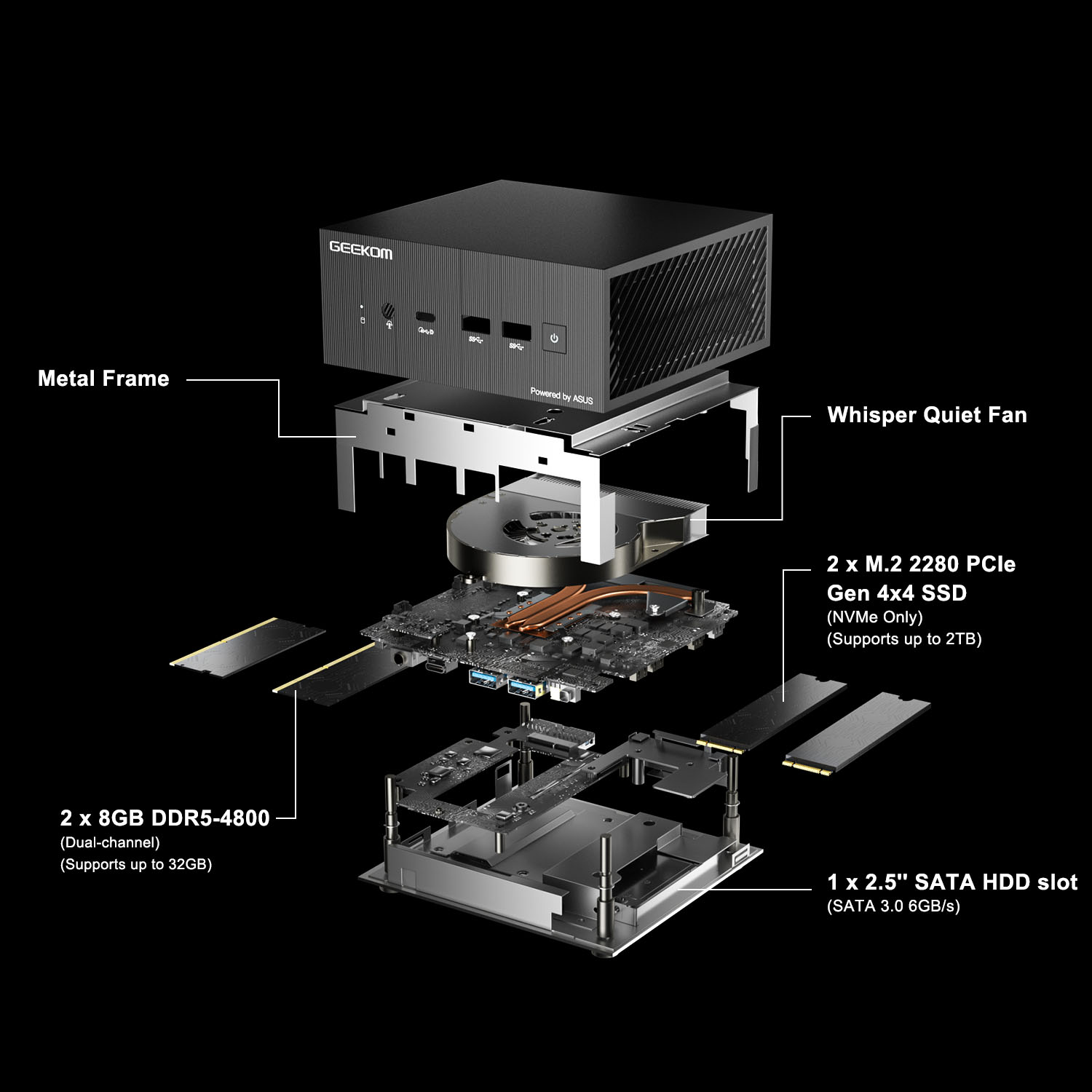

| Storage | 2 x M.2 2280 PCIe Gen 4x4 SSD , supports up to 2TB (* NVMe only) 1 x 2.5”7mm SATA HDD, supports up to 2TB |
|
| Operating System | Windows 11 Pro | |
| Bluetooth® Wireless Technology | Bluetooth® v5.2 | |
| LAN | 2.5G LAN (RJ45) | |
| Wireless Network | Wi-Fi 6E | |
| Power Supply | 20V 7.5A, 150W Power Adapter | |

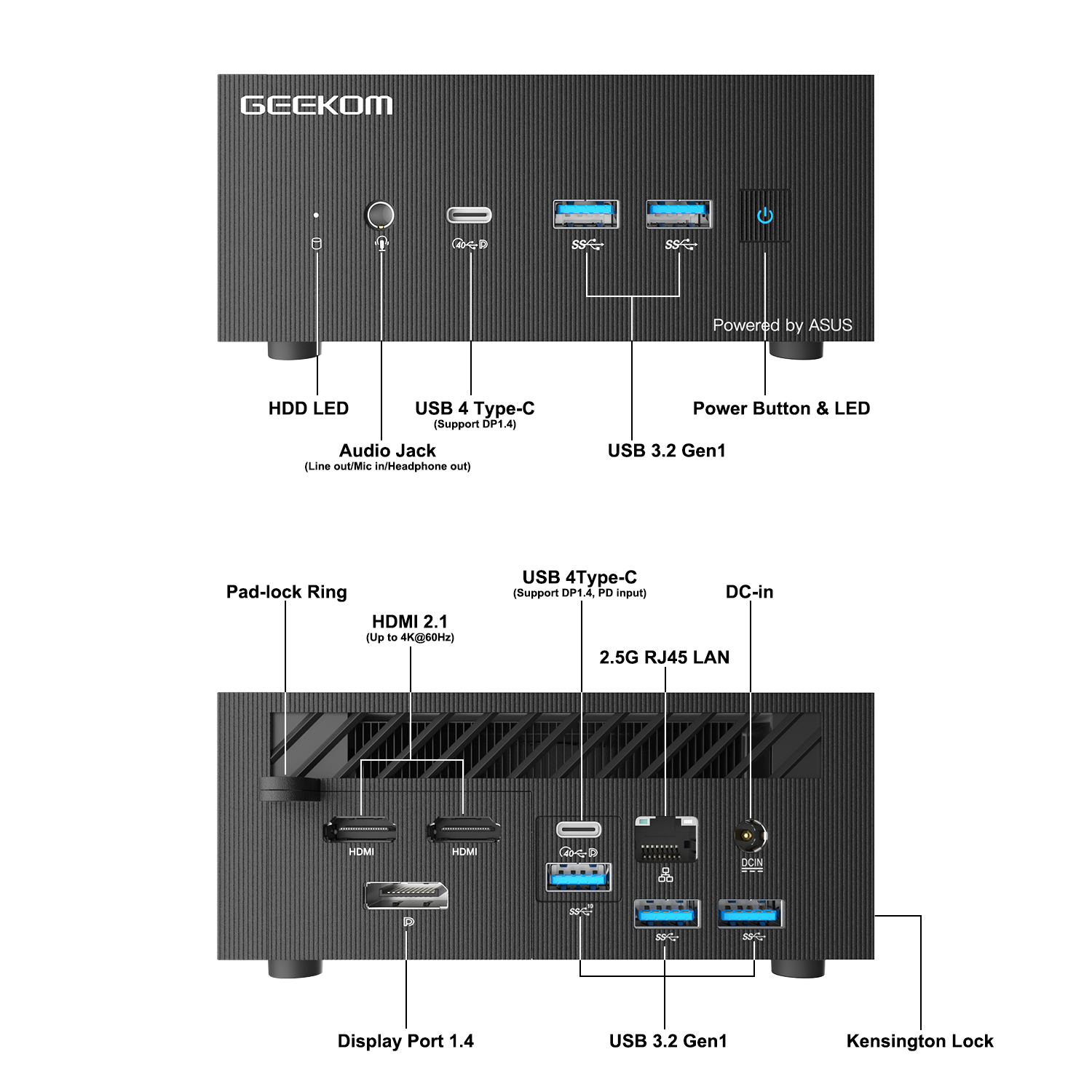

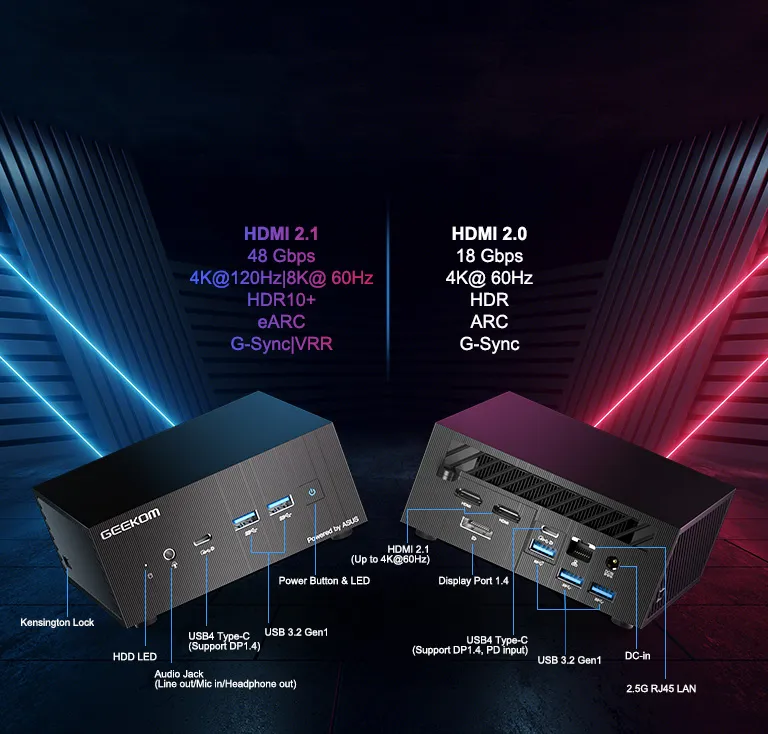

| I/O Ports | Front I/O | 1 x USB4 Type-C (Support DP1.4, 7680 x 4320 @60Hz) 2 x USB 3.2 Gen1 1 x Audio Jack (Line out/Mic in/Headphone out) |
| Side I/O | 1 x Kensington Lock | |
| Rear I/O | 1 x USB4 Type-C (Support DP1.4, 7680 x 4320 @60Hz) 3 x USB 3.2 Gen1 2 x HDMI 2.1 Port (4096 x 2160 @60Hz) 1 x Display Port 1.4 (5120 x 2160@60Hz) 1 x 2.5G RJ45 LAN 1 x DC-in 1 x Padlock ring |
|

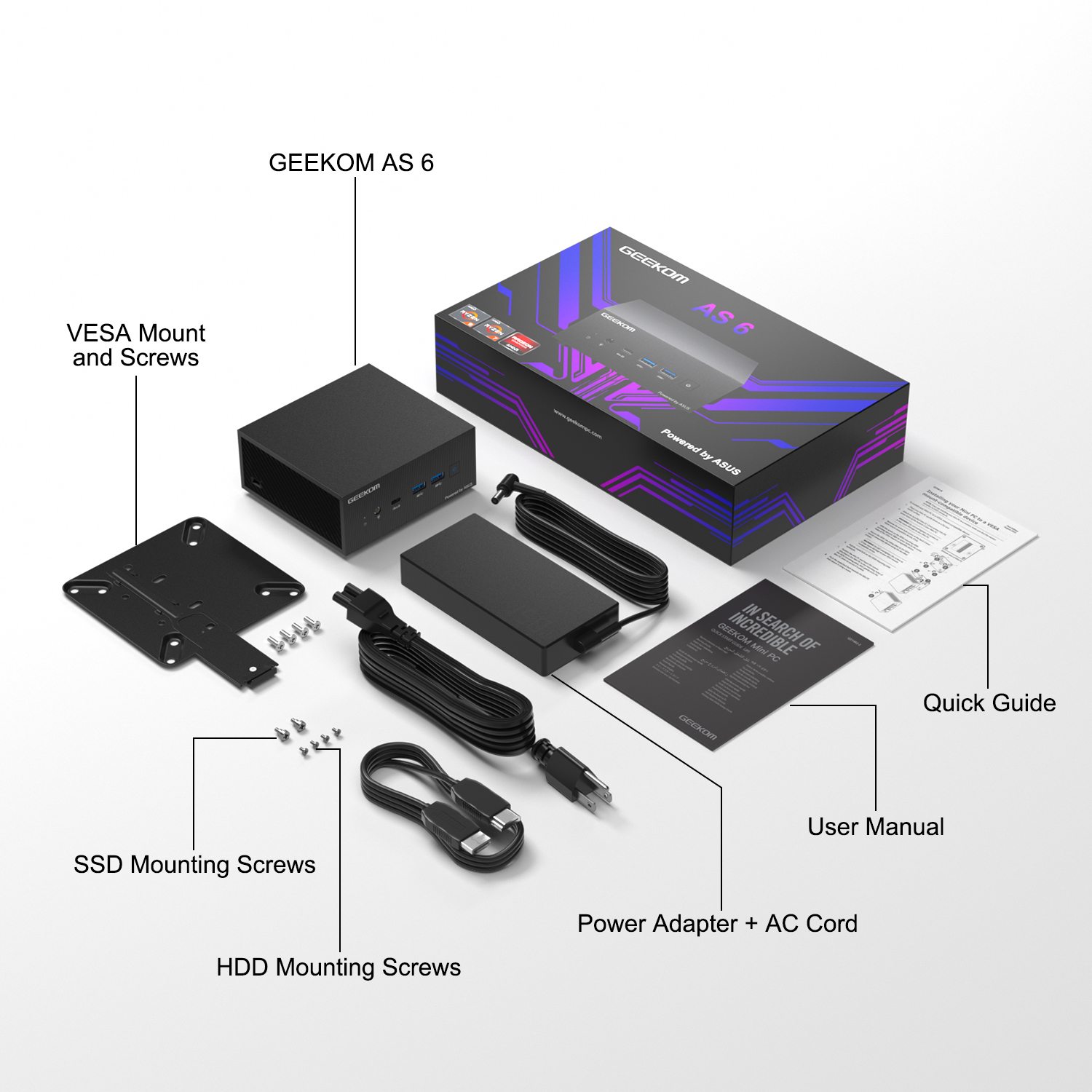

| What’s In The Box | 1 x AS 6 Mini PC 1 x Power Adapter 1 x HDMI Cable 1 x VESA Mount ( 2 packs of screws included) 1 x SSD Mounting Screws (2 packs) 1 x HDD Mounting Screws (1 pack) 1 x Qucik Guide 1 x User Manual |
|
